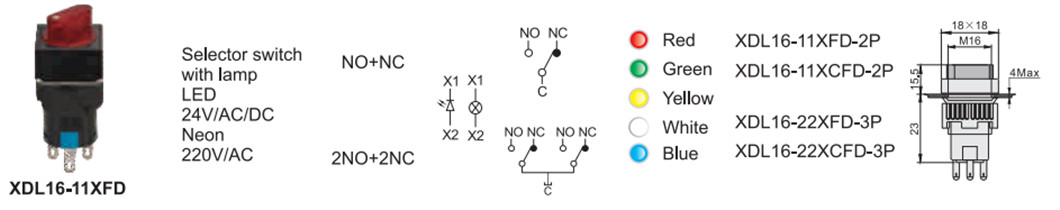

XDL16-11XFD Plastic Light Push Button Switch 16mm Switch Electric Switch

Inquire Now

Description

The XDL16-11XFD Plastic Light Push Button Switch is an essential component designed for controlling circuits with AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V. This robust switch is perfect for signal control and interlocking applications. The main body is crafted from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. Featuring contacts made from a special silver alloy, this switch enjoys enhanced resistance to electrical erosion. The product also includes a signal lamp series, suitable for electrical circuits up to 380V, ideal for indicating, warning, or emergency signals. All components comply with GB/T14048.1 and IEC60947-5-1 standards, with certifications such as CE, ISO9001, ROHS, and UL, ensuring quality and reliability in various applications.

Specifications

Parameter Button Signal Lamp
Rated Insulation AC 600V (50Hz/60Hz) Insulation Resistance
Conventional Heating Current 10A Contact Resistance
Insulation Resistance ≥50MΩ Pf Withstand Voltage
Contact Resistance ≤25MinΩ Voltage Wave
Mechanical Life 100×10000 pushbutton
50×10000 selector switch
Brightness
Electrical Life 500×10000 pushbutton
25×10000 selector switch
Continuous Working Life

Additional Information

The XDL16-11XFD switch is engineered for exceptional performance and durability, making it suitable for various industrial and commercial applications. With its easy installation and reliable operation, it is perfect for environments where safety and efficiency are paramount.
