Description

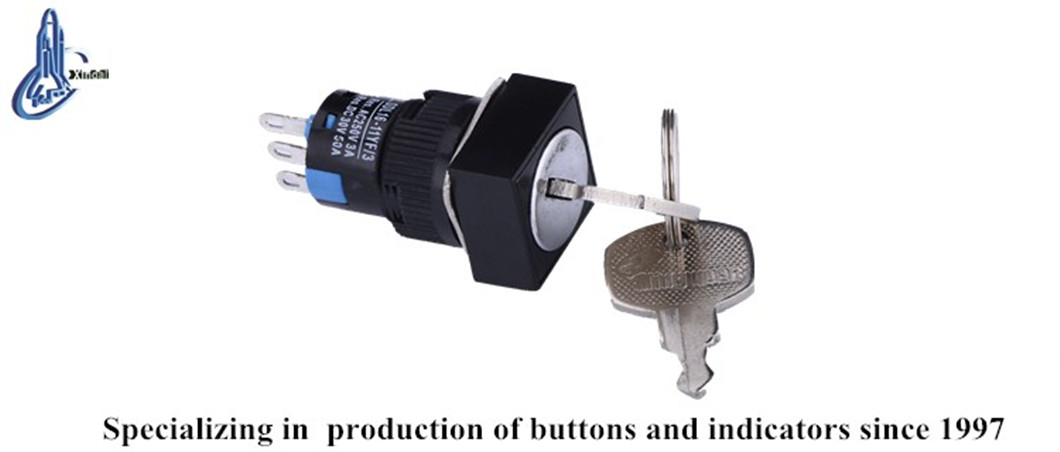

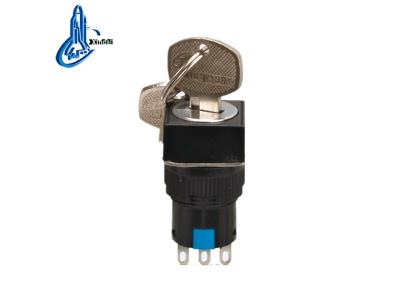

The XDL16-11YF Elevator Release Push Button Key Electrical Key Switch is a reliable and essential component designed for controlling circuits in elevators and other electrical appliances. Engineered to withstand high voltage, this push button series operates effectively under AC voltage up to 660V (50Hz/60Hz) and DC voltage under 400V, making it perfect for signal control and interlocking applications. The robust construction features a main body crafted from zinc alloy and high-grade flame-retardant plastic, while the contacts utilize a specially formulated silver alloy for superior electrical erosion resistance. This product is compliant with international standards, ensuring safety and reliability.
Specifications
| Main Technical Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100 x 10,000 pushbutton | Brightness |
| Electrical Life | 500 x 10,000 pushbutton | Continuous Working Life |
Additional Information
- Certifications: CE, ISO9001, ROHS, UL certified.
- Ideal for indicating signals, warning signals, and emergency signals.
