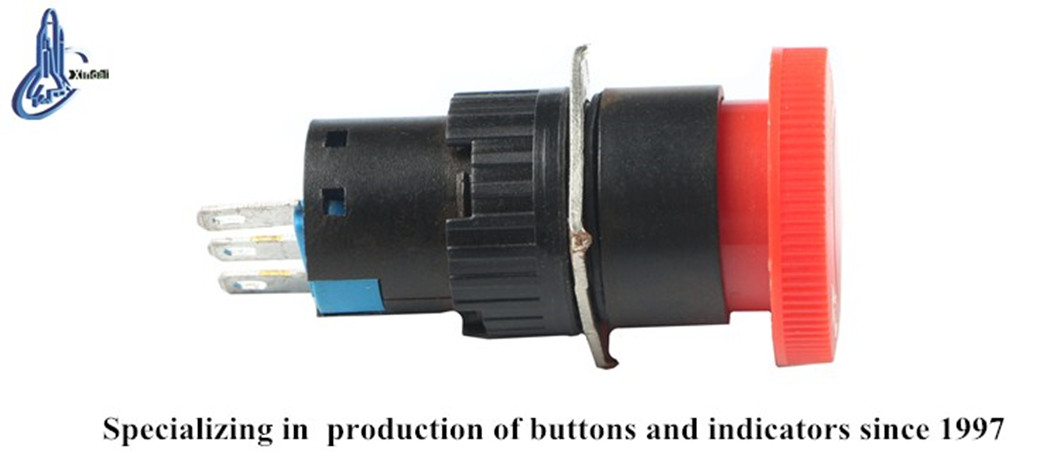

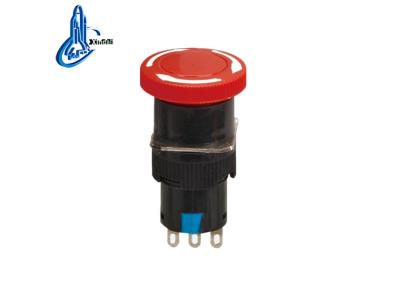

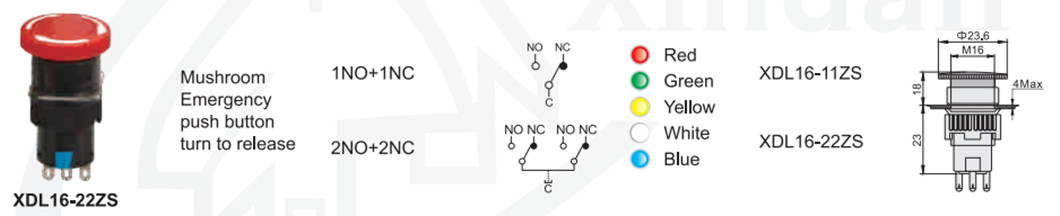

XDL16-22ZS Plastic Push Button Reset Switch Mushroom Push Button
Inquire NowDescription
The XDL16-22ZS Plastic Push Button Reset Switch is a robust and reliable component designed for controlling AC and DC circuits. This mushroom-style push button is engineered to handle AC voltage up to 660V at 50Hz/60Hz and DC voltage below 400V, making it ideal for various electrical applications including signal control and interlocking purposes. The body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The switch features a special silver alloy contact for enhanced resistance to electrical erosion, guaranteeing consistent performance. Additionally, the accompanying signal lamp series operates well within electrical appliances circuits of up to 380V, providing clear indication signals for various operational needs. All products are manufactured according to GB/T14048.1 and IEC60947-5-1 standards, and they carry certifications for CE, ISO9001, ROHS, and UL, underscoring their quality and safety.
Specifications
| Parameter | Button Specification | Signal Lamp Specification |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 pushbutton | Brightness |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life |
Additional Information
– Ideal for use in both industrial and commercial electrical systems.
– Ensures high durability and safety with anti-flame materials.
– Recommended for applications requiring high anti-electrical erosion protection.
