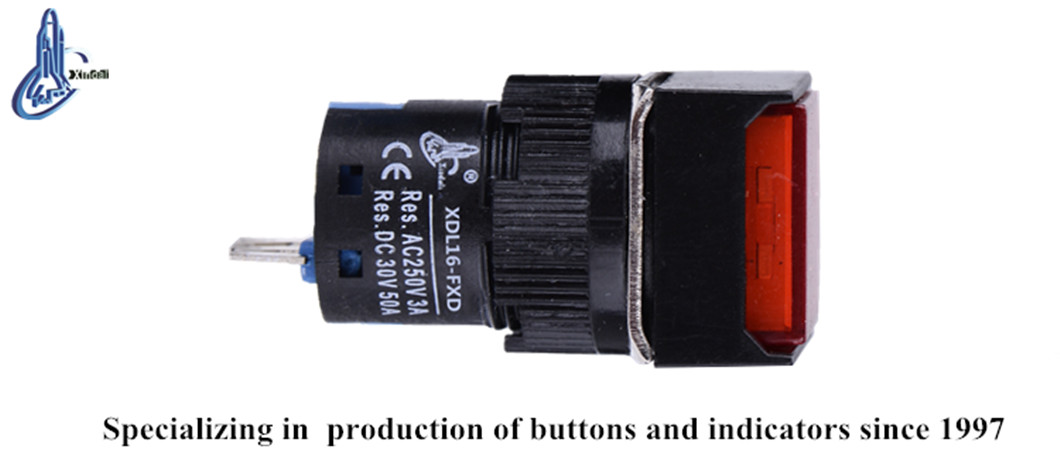

XDL16-FXD Square Push Button LED Button Light Mini Pushbutton Switch
Inquire NowDescription
The XDL16-FXD Square Push Button LED Button Light Mini Pushbutton Switch is a robust and versatile component designed for controlling circuits in both AC and DC applications. Capable of handling AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V, this push button switch excels in controlling signals and interlocking tasks. Its main body is crafted from durable zinc alloy and high-grade anti-flame plastic, ensuring both reliability and safety. The contacts are constructed from a special silver alloy that provides excellent anti-electrical erosion properties, enhancing longevity and performance.
This switch is ideal for various applications, including indicating signals, warning signals, and emergency alerts. Compliance with GB/T14048.1 and IEC60947-5-1 standards ensures that it meets high safety and quality benchmarks. Additionally, it is CE, ISO9001, ROHS, and UL certified, making it a trusted choice for professionals in the field.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100 x 10,000 Pushbutton | Brightness |
| Electrical Life | 500 x 10,000 Pushbutton | Continuous Working Life |
| 10 x 10,000h |
Additional Information
For best performance, ensure that the installation is done in accordance with electrical safety guidelines. The switch is designed for long-lasting use, featuring both mechanical and electrical life ratings to accommodate demanding applications. Always refer to the provided specifications to ensure proper usage and compatibility with your systems.
