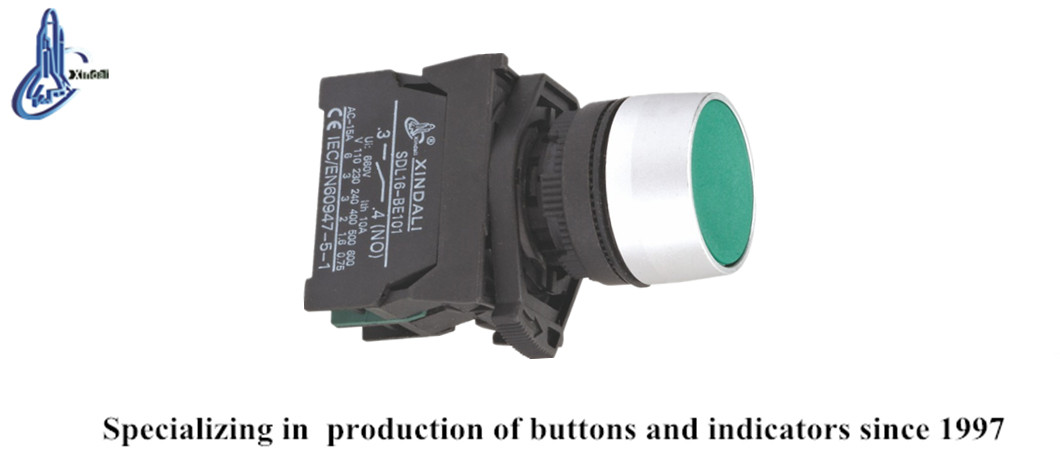

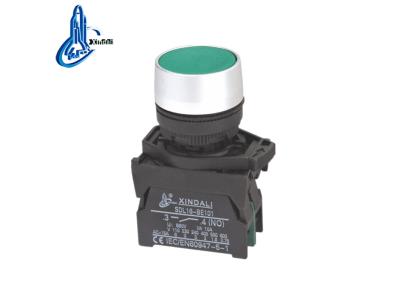

XDL21-BA31 flush green ip65 waterproof switch metal push button switch
Inquire NowDescription
The XDL21-BA31 flush green IP65 waterproof switch is a robust metal push button switch designed for controlling circuits in both AC and DC electrical systems. This versatile switch can handle AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, making it ideal for signal control and interlocking applications. Its body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and reliability even in challenging environments. The switch features a special silver alloy contact that offers superior resistance to electrical erosion. This makes it not only an effective solution for everyday applications but also suitable for emergency and warning signals in various electrical appliances, compliant with GB/T14048.1 and IEC60947-5-1 standards, and certified with CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Button Specification | Signal Lamp Specification | ||
|---|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ | |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ | |
| Insulation Resistance | ≥50MΩ | PF Withstand Voltage | AC 2.5KV/min | |
| Contact Resistance | ≤25MinΩ | Voltage Wave | ±20% | |
| Mechanical Life | 100×10000 pushbutton | 50×10000 selector switch | Brightness | 60cd/m² |
| Electrical Life | 500×10000 pushbutton | 25×10000 selector switch | Continuous Working Life | 10x10000h |
Additional Information
- Waterproof Rating: IP65
- Material: Zinc Alloy and High-Grade Anti-Flame Plastic
- Certification: CE, ISO9001, ROHS, UL
