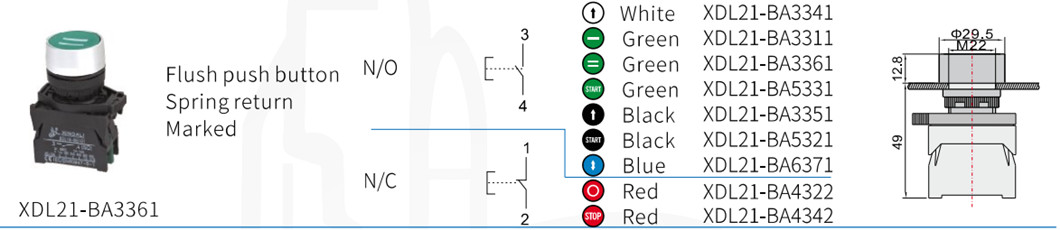

XDL21-BA3361 flush switch waterproof putting green with return electric symbols
Inquire NowDescription
The XDL21-BA3361 flush switch is a high-performance, waterproof electrical component designed for a variety of applications. Ideal for controlling circuits with AC voltage up to 660V across 50Hz or 60Hz, and DC voltage below 400V, this switch excels in both signal management and interlocking functions. Its robust construction features a zinc alloy body and high-grade anti-flame plastic, ensuring durability and safety. The contacts are made from a special silver alloy, offering superior resistance to electrical erosion, making it a reliable choice for demanding environments.
This switch is complemented by a signal lamp series suitable for electrical devices operating at AC voltage up to 380V and DC voltage below 380V, perfect for indicating, warning, and emergency signals. Each product meets stringent standards, including GB/T14048.1 and IEC60947-5-1, and comes certified by CE, ISO9001, RoHS, and UL, underscoring its commitment to quality and safety.
Specifications
| Parameter | Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Contact Resistance | ≤25MinΩ | Pf Withstand Voltage |
| Mechanical Life | 100 x 10000 pushbutton | Brightness |
| Electrical Life | 500 x 10000 pushbutton | Continuous Working Life |
| Voltage Wave | ±20% |
Additional Information
- Compliance: CE, ISO9001, RoHS, UL certified
- Excellent electrical and mechanical durability
