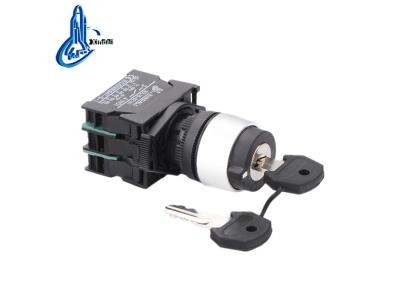

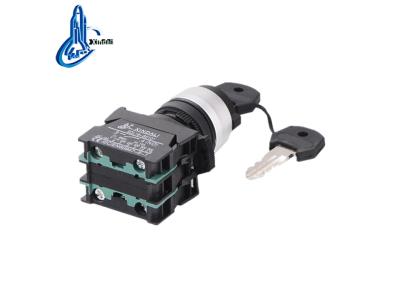

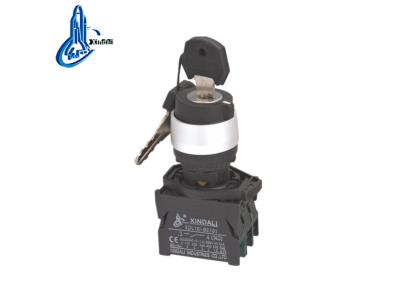

XDL21-BG33 2 position or switch on off electric key switch
Inquire NowDescription
The XDL21-BG33 2 Position Electric Key Switch is a versatile and essential component designed for controlling circuit operations with both AC and DC voltages. This high-quality switch is capable of managing AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V. Ideal for controlling signals and interlocking purposes, the push button series is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring long-lasting performance. Featuring a special silver alloy contact, this switch offers exceptional resistance to electrical erosion, enhancing its reliability.
Additionally, the associated signal lamp series operates efficiently within electrical appliances circuits of up to 380V/50Hz for AC and below 380V for DC. This makes it perfect for indicating, warning, and emergency signaling applications. All products are compliant with GB/T14048.1 and IEC60947-5-1 standards and are CE, ISO9001, ROHS, and UL certified, guaranteeing high safety and quality assurance.
Specifications
| Main Technical Parameter | Basic Technical Parameters | Basic Technical Parameter of Signal Lamp | ||
|---|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ | |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ | |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage | AC 2.5KV/min | |
| Contact Resistance | ≤25MinΩ | Voltage Wave | ±20% | |
| Mechanical Life | 100×10000 pushbutton | 50×10000 selector switch | Brightness | 60cd/m² |
| Electrical Life | 500×10000 pushbutton | 25×10000 selector switch | Continuous Working Life | 10x10000h |
Additional Information
- Compliant with safety standards: CE, ISO9001, ROHS, UL certified.
- Suitable for a variety of applications including control circuits and signal indication.
