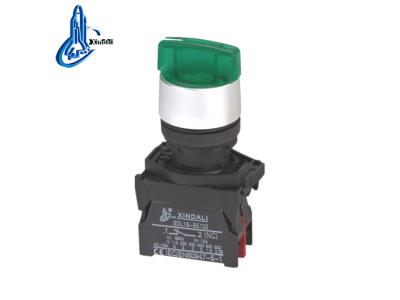

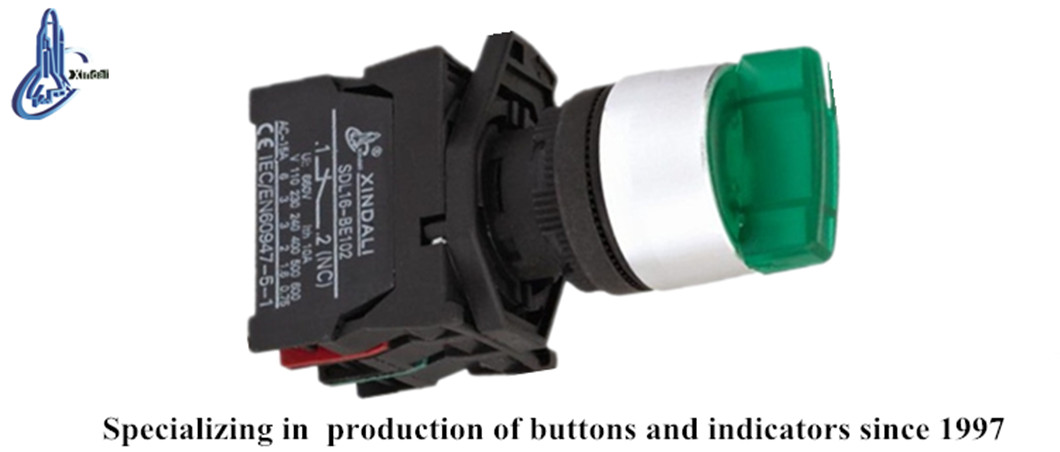

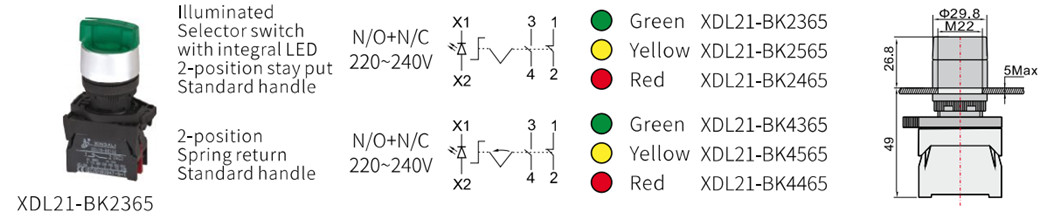

XDL21-BK2365 elevator position indicator off on pushbutton 2 position switch
Inquire NowDescription
The XDL21-BK2365 elevator position indicator is a reliable two-position switch with an off-on pushbutton design, specifically engineered for controlling electrical circuits in various applications. This robust switch can handle AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, making it ideal for signal control and interlocking purposes within elevator systems. Constructed from a durable zinc alloy and high-grade anti-flame plastic, the pushbutton also features a special silver alloy contact for enhanced electrical erosion resistance. Additionally, the integrated signal lamps are perfect for indicating, warning, or emergency signals, ensuring clarity and safety in operation. Every unit adheres to strict standards such as GB/T14048.1 and IEC60947-5-1 and is certified by CE, ISO9001, ROHS, and UL.

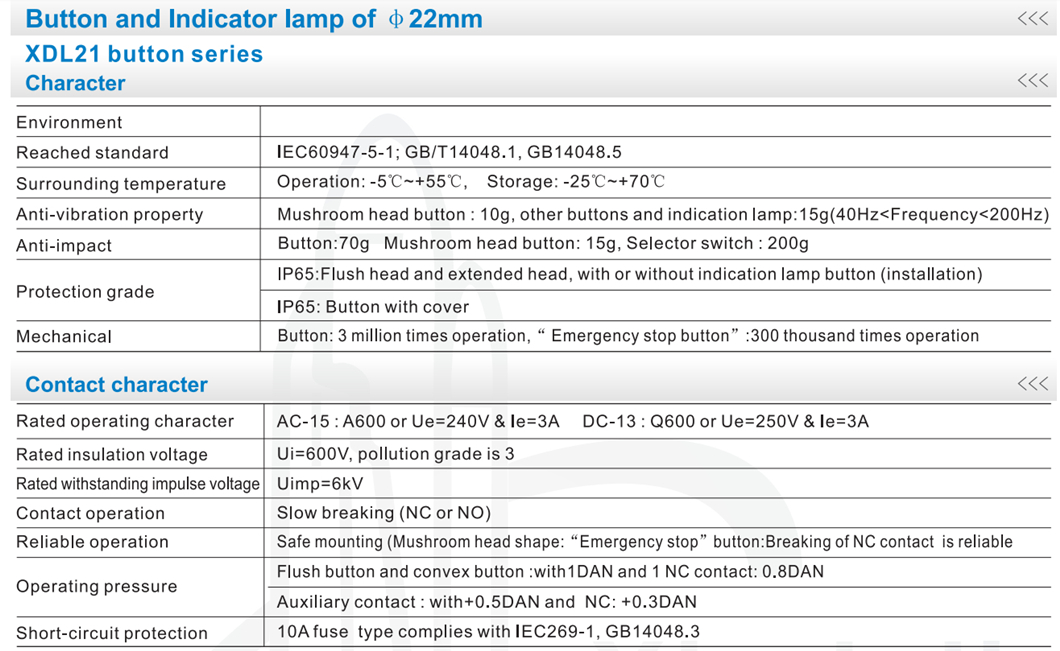

Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min | Voltage Wave | ±20% |
| Mechanical Life | 100×10,000 pushbuttons | Brightness | 60cd/m² |
| Electrical Life | 500×10,000 pushbuttons | Continuous Working Life | 10×10,000h |
Additional Information
The switch and indicator are designed for durability and high performance, ensuring long-term reliability even under continuous use. These features make the XDL21-BK2365 an essential component for modern elevator systems, providing operational safety and efficiency.
