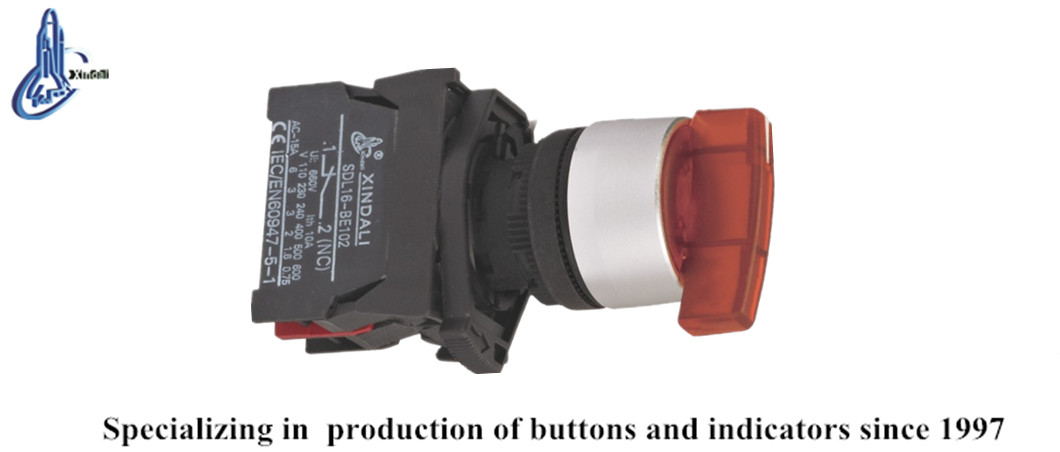

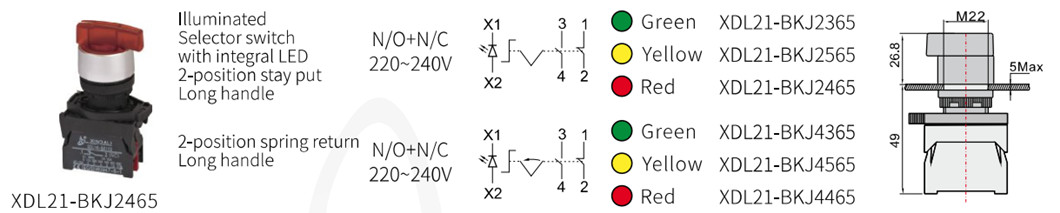

XDL21-BKJ2465 waterproof pushbutton led indicator 2 position or switch
Inquire NowDescription
The XDL21-BKJ2465 waterproof pushbutton LED indicator is a versatile control device designed for managing electrical circuits with both AC and DC voltages. This innovative product excels in controlling circuits of AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, making it ideal for a variety of applications including signal control and interlocking purposes. Crafted from durable zinc alloy and high-grade anti-flame plastic, its robust construction ensures longevity and reliability. The special silver alloy contacts enhance the device’s resistance to electrical erosion. Additionally, the included signal lamp is suited for AC voltage circuits up to 380V (50Hz) and is perfect for indicating signals, warnings, and emergencies. Compliance with GB/T14048.1 and IEC60947-5-1 standards ensures that all products are CE, ISO9001, ROHS, and UL certified, providing peace of mind regarding safety and quality.
Specifications
| Parameter | Pushbutton | Selector Switch | Signal Lamp |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | |
| Conventional Heating Current | 10A | Contact Resistance | |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage | |
| Contact Resistance | ≤25MinΩ | Voltage Wave | |
| Mechanical Life | 100×10000 | 50×10000 | Brightness |
| Electrical Life | 500×10000 | 25×10000 | Continuous Working Life |
Additional Information
- Compliant with international standards for safety and quality.
- Ideal for various applications including control and indication in electrical circuits.
