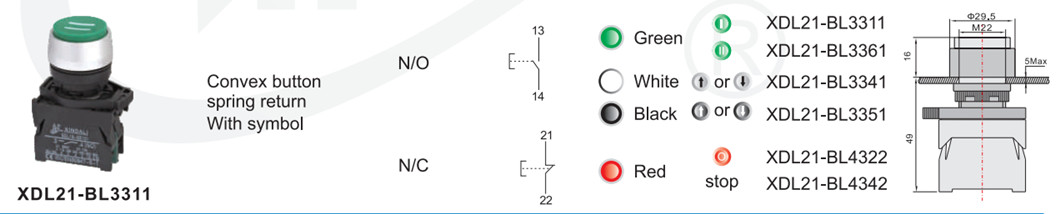

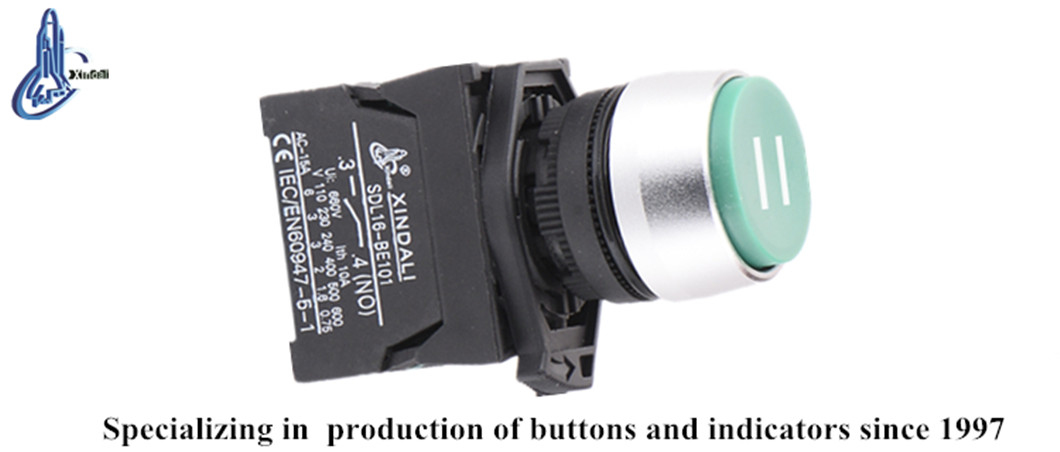

XDL21-BL3361 metal ip65 waterproof switch momentary push button switch
Inquire NowDescription
The XDL21-BL3361 is a robust metal momentary push button switch designed for versatility and durability. Its IP65 waterproof rating ensures reliable performance in harsh conditions, making it suitable for both indoor and outdoor applications. This push button switch is engineered to control circuits with AC voltages up to 660V at 50Hz or 60Hz, as well as DC voltages below 400V. Crafted from a high-grade zinc alloy and flame-retardant plastic, the switch offers exceptional resistance to electrical erosion thanks to its special silver alloy contacts. Whether used for signaling, interlocking, or emergency purposes, it stands out for its compliance with international safety standards, boasting CE, ISO9001, ROHS, and UL certifications.
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min | Voltage Wave | ±20% |
| Mechanical Life | 100×10000 pushes | Brightness | 60 cd/m² |
| Electrical Life | 500×10000 pushes | Continuous Working Life | 10x10000h |
Additional Information
- Ideal for various electrical appliances circuits.
- Perfect for indicating, warning, and emergency signals.
- Complies with GB/T14048.1 and IEC60947-5-1 standards.
