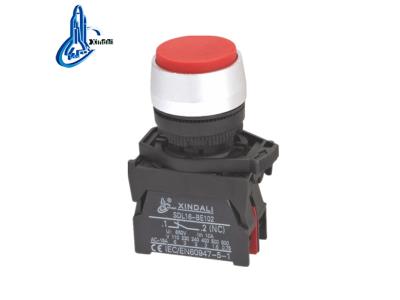

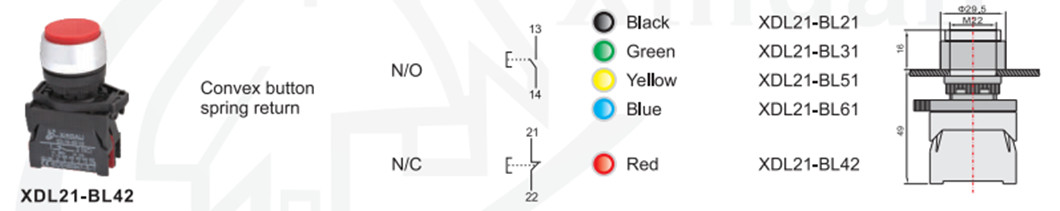

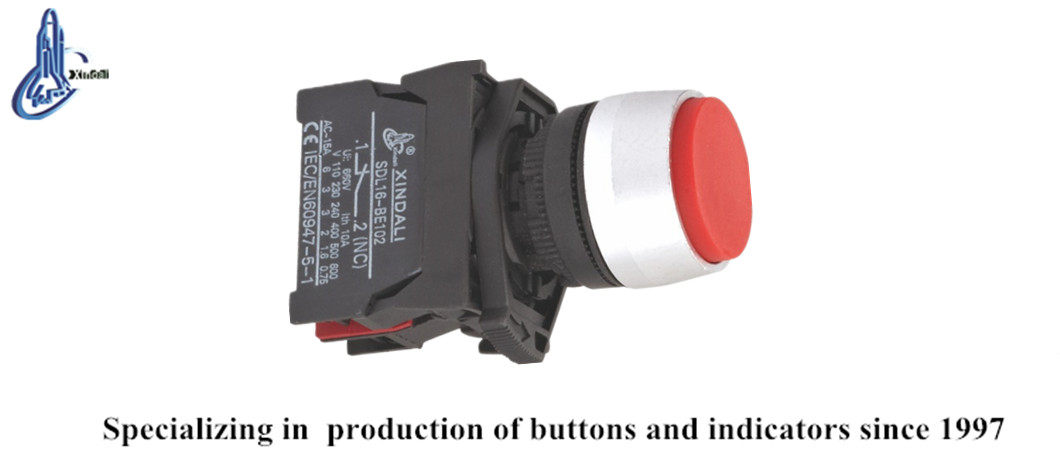

XDL21-BL42 metal push button switch waterproof cover convex metal button
Inquire NowDescription
The XDL21-BL42 metal push button switch is designed for reliable performance in various electrical applications. Its waterproof cover and convex metal button ensure durability and ease of use, making it suitable for controlling circuits with AC voltages up to 660V and DC voltages below 400V. Crafted from high-quality zinc alloy and flame-resistant plastic, this switch is engineered with a special silver alloy contact that provides exceptional resistance to electrical erosion. This makes it an ideal choice for controlling signals and interlocking systems in a safe and efficient manner. The push button is complemented by a signal lamp suitable for AC circuits up to 380V, perfect for indicating warnings and emergencies. The XDL21-BL42 complies with essential quality standards, including GB/T14048.1 and IEC60947-5-1, and is certified by CE, IOS9001, ROHS, and UL.
Specifications
| Parameter | Push Button | Signal Lamp | |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | |
| Conventional Heating Current | 10A | Contact Resistance | |
| Mechanical Life | 100×10,000 pushes | Brightness | 60 cd/m² |
| Electrical Life | 500×10,000 pushes | Continuous Working Life | 10×10,000 hours |
| Contact Resistance | ≤25mΩ | Voltage Wave | ±20% |
| Insulation Resistance | ≥50MΩ | PF Withstand Voltage | AC 2.5KV/min |
Additional Information
- Perfect for controlling electrical signals in various applications.
- Durable design with a waterproof cover for long-lasting use.
- Ideal for emergency and warning signal indications.
