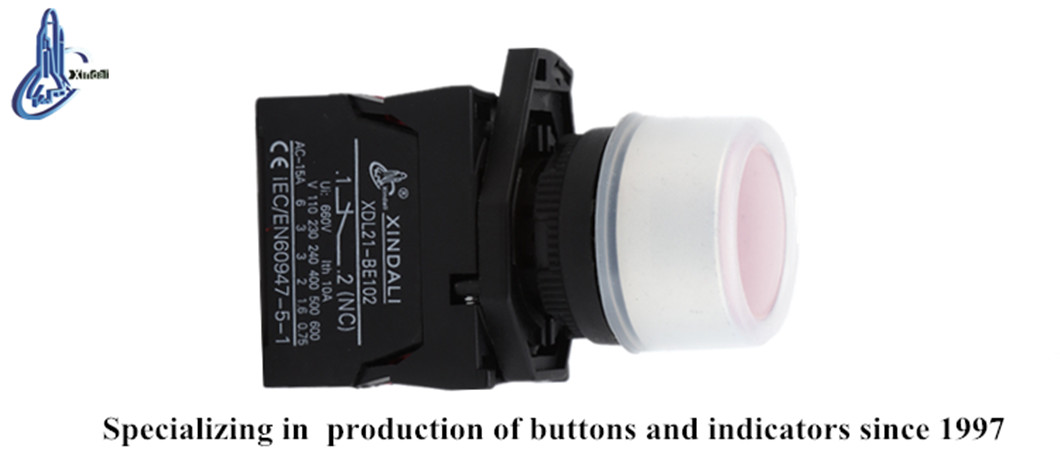

XDL21-BP42 latching push button switch ip67 push button for elevators
Inquire NowDescription
The XDL21-BP42 latching push button switch is designed specifically for elevating applications, featuring an IP67 rating that ensures water and dust resistance. This robust switch is adept at controlling circuits of AC voltage up to 660V/50Hz or 60Hz and DC voltage below 400V, making it perfect for signal control and interlocking purposes. Crafted with a durable zinc alloy body and high-grade anti-flame plastic, it incorporates special silver alloy contacts that provide excellent anti-electrical erosion, ensuring longevity and reliability. Additionally, the signal lamp series associated with this switch is ideal for AC voltage appliances up to 380V/50Hz and DC voltage below 380V, serving as effective warning and emergency indicators. The XDL21-BP42 meets various standards such as GB/T14048.1 and IEC60947-5-1, and is CE, ISO9001, ROHS and UL certified, guaranteeing quality and safety.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10,000 pushes | Brightness |
| Electrical Life | 500×10,000 pushes | Continuous Working Life |
| 10×10,000h |
Additional Information
- Designed for direct control of AC and DC circuits.
- Ideal for use in elevators, industrial control panels, and other applications requiring reliable signaling.
- Meets stringent international safety and quality standards.
