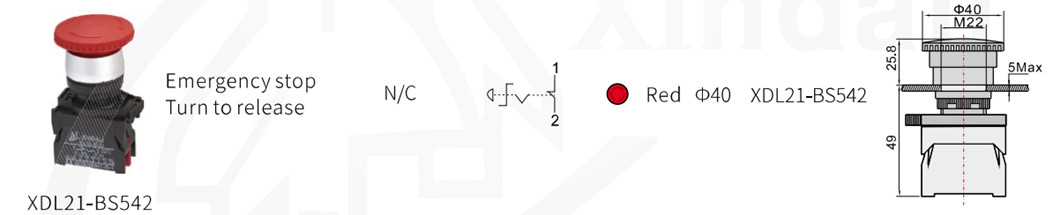

XDL21-BS542 high quality mushroom head industrial emergency stop button switch
Inquire NowDescription
The XDL21-BS542 is a high-quality mushroom head industrial emergency stop button switch designed for safety and reliability in various industrial applications. This robust switch is capable of controlling AC voltage circuits up to 660V at 50Hz or 60Hz and DC voltage circuits below 400V. Its primary function is to control signals and provide interlocking capabilities, making it an essential component in emergency stop applications.
The switch features a durable construction with a main body made of zinc alloy and high-grade anti-flame plastic. The contacts utilize a special silver alloy, ensuring high resistance to electrical erosion. Additionally, the product complies with industry standards such as GB/T14048.1 and IEC60947-5-1, and is certified by CE, ISO9001, ROHS, and UL, ensuring its quality and safety for use in critical environments.
Specifications
| Main Technical Parameter | Button Technical Parameter | Signal Lamp Technical Parameter |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 pushbutton | Brightness |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life |
Additional Information
- Ideal for emergency signaling and interlocking purposes.
- Recommended usage in industrial settings to ensure operational safety.
- Caution: Ensure compliance with local electrical standards and regulations during installation.
