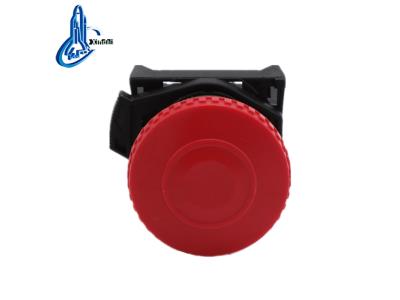

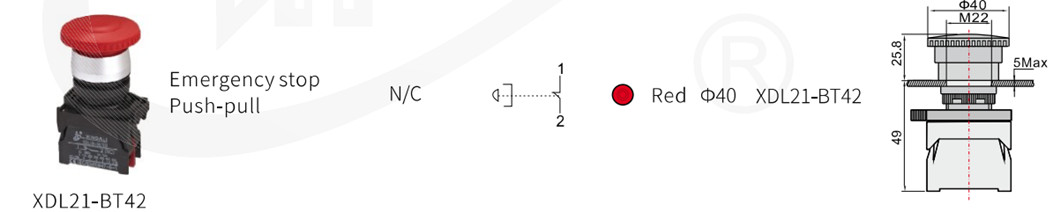

XDL21-BT42 CE ROHS mushroom head push-pull pushbutton switch
Inquire NowDescription
The XDL21-BT42 CE ROHS Mushroom Head Push-Pull Pushbutton Switch is a robust and reliable component designed for controlling circuits in various electrical applications. This pushbutton switch is suitable for AC voltages up to 660V at 50Hz or 60Hz and for DC voltages below 400V, making it an essential element in controlling signals and interlocking purposes. Crafted from a durable zinc alloy and high-grade anti-flame plastic, it features contacts made of special silver alloy, which provides excellent resistance to electrical erosion. This switch is also compatible with electrical appliance circuits of AC voltage up to 380V/50Hz and DC voltage below 380V, making it ideal for indicating signals, warning signals, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards, and are CE, ISO9001, ROHS, and UL certified.
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ |
| Mechanical Life | 100×10000 (pushbutton) | Electrical Life | 500×10000 (pushbutton) |
| Brightness | 60cd/m2 | Continuous Working Life | 10x10000h |
| Pf Withstand Voltage | AC 2.5KV/min | Voltage Wave | ±20% |
Additional Information
- Ideal for applications requiring signaling and interlocking.
- High durability and electrical resistance ensure long-lasting performance.
