Description

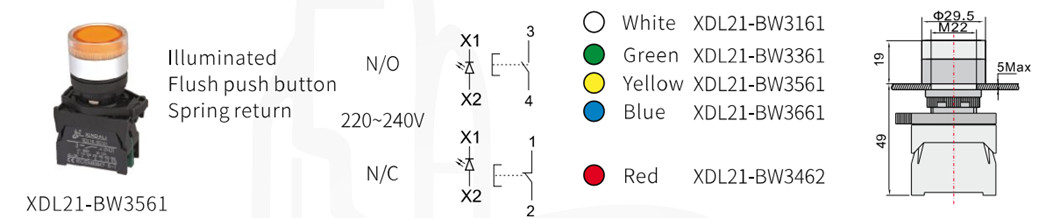

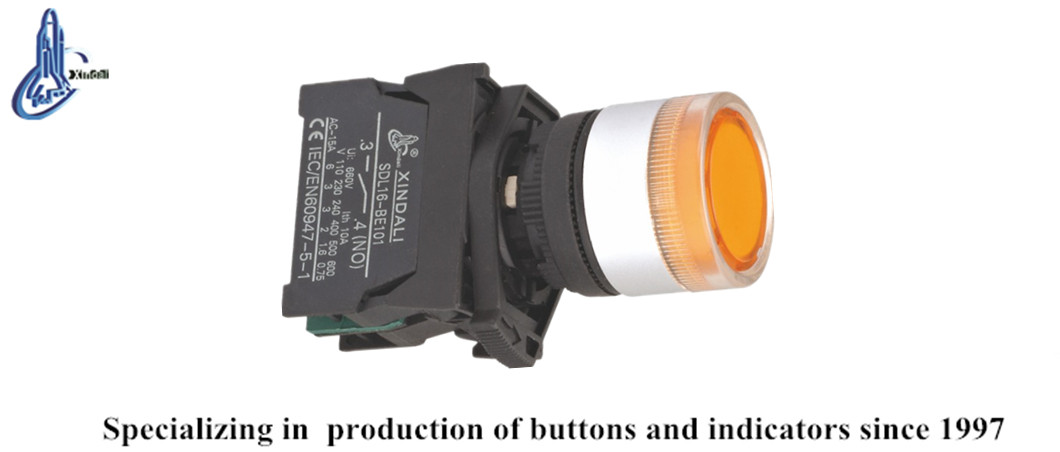

The XDL21-BW3561 is a premium waterproof LED indicator push button switch that combines durability with advanced functionality. Designed for controlling circuits of AC voltages up to 660V (50Hz/60Hz) and DC voltages below 400V, this push button series is perfect for a variety of applications, including signaling, interlocking, and controlling electrical appliances. Built with a robust zinc alloy body and high-grade anti-flame plastic, it ensures longevity and resistance to electrical erosion thanks to its special silver alloy contacts. This product is compliant with GB/T14048.1 and IEC60947-5-1 standards, and is certified CE, ISO9001, ROHS, and UL, assuring you of its quality and safety.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | AC 380V (50Hz) |
| Insulation Resistance | ≥50MΩ | — |
| Conventional Heating Current | 10A | — |
| Contact Resistance | ≤25MinΩ | — |
| Withstand Voltage | AC 2.5KV/min | — |
| Mechanical Life | 100×10000 presses | 50×10000 presses (selector switch) |
| Electrical Life | 500×10000 presses | 25×10000 presses (selector switch) |
| Continuous Working Life | 10x10000h | — |
| Brightness | 60cd/m² | — |
Additional Information
- Ideal for use in various control and signaling applications.
- Constructed to meet high safety and quality standards.
