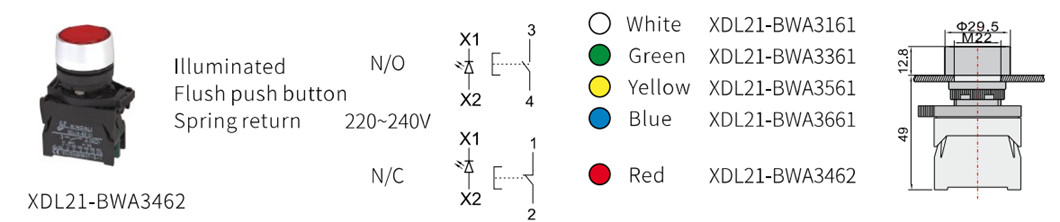

XDL21-BWA3462 waterproof industrial waterproof lamp metal push button with led light

Inquire Now

Description

The XDL21-BWA3462 is a robust and reliable waterproof industrial lamp designed for demanding environments. Featuring a metal push button and bright LED light, this device excels in controlling circuits with AC voltages up to 660V (50Hz/60Hz) and DC voltages below 400V. The rugged construction includes a zinc alloy body and high-grade anti-flame plastic, ensuring durability and longevity. It is perfect for signal control, interlocking purposes, and acts as an effective indicator for various electrical appliances. The lamp series supports electrical circuits of AC voltage up to 380V (50Hz) and DC voltage below 380V, making it ideal for warning, emergency, and indicating signals. All components comply with GB/T14048.1 and IEC60947-5-1 standards, and the product is CE, ISO9001, ROHS, and UL certified.

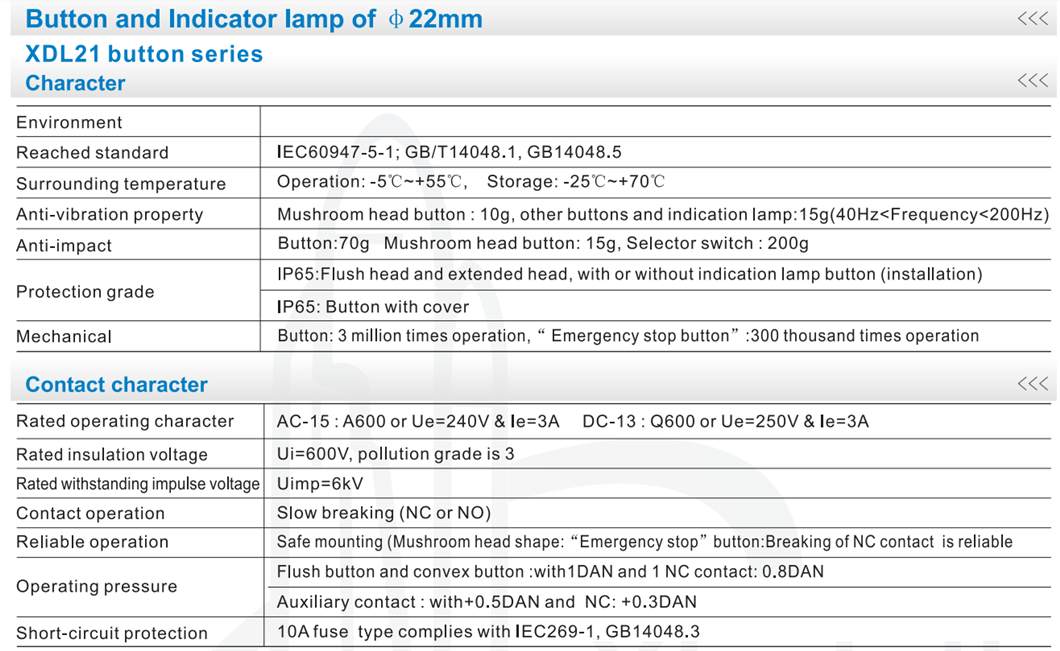

Specifications

Parameter Button Specification Signal Lamp Specification
Rated Insulation AC 600V (50Hz/60Hz) Insulation Resistance
Conventional Heating Current 10A Contact Resistance
Mechanical Life 100×10,000 pushes Brightness
Electrical Life 500×10,000 pushes Continuous Working Life

Additional Information

  • Brightness: 60 cd/m²
  • Pf Withstand Voltage: AC 2.5KV/min
  • Contact Resistance: ≤ 25 mΩ
  • Voltage Wave: ±20%
  • Insulation Resistance: ≥ 50 MΩ
