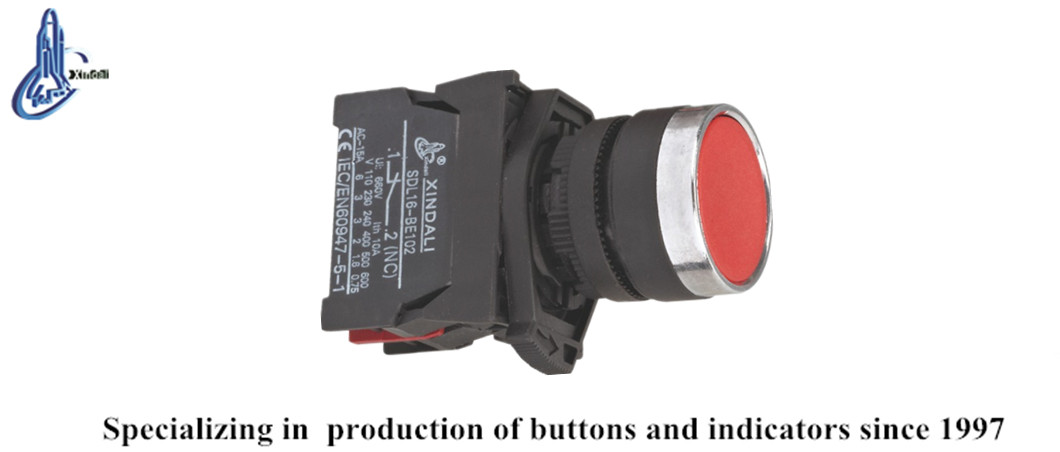

XDL21-CA42 red flush head pushbutton high quality waterproof push button
Inquire NowDescription
The XDL21-CA42 red flush head pushbutton is a high-quality, waterproof push button designed for durability and reliability in various applications. This push button series is engineered to control circuits with an AC voltage of up to 660V (50Hz or 60Hz) and DC voltage below 400V. Ideal for signal control and interlocking, it features a robust main body made of zinc alloy combined with high-grade anti-flame plastic. The contacts utilize a specialized silver alloy, ensuring exceptional resistance against electrical erosion. Additionally, this series includes signal lamps suitable for electrical appliances with an AC voltage of up to 380V (50Hz) and DC voltage up to 380V, making it perfect for indicating, warning, and emergency signals. All products in this range comply with GB/T14048.1 and IEC60947-5-1 standards and are certified by CE, ISO 9001, ROHS, and UL.
Specifications
| Main Technical Parameter | Basic Technical Parameter of Button | Basic Technical Parameter of Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10,000 (pushbutton) | 50×10,000 (selector switch) |
| Electrical Life | 500×10,000 (pushbutton) | 25×10,000 (selector switch) |
| Continuous Working Life | 10×10,000h | Brightness |
| 60cd/m² |
Additional Information
For optimal performance, ensure proper installation and usage according to the relevant electrical standards. The push button is designed for long-lasting operation, with both mechanical and electrical lifespans significantly exceeding typical usage demands.
