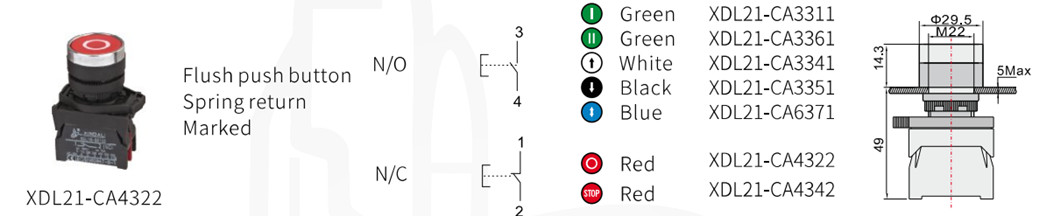

XDL21-CA4322 waterproof red button head push button switch with symbol
Inquire NowDescription
Introducing the XDL21-CA4322 waterproof red button head push button switch, designed for robust performance in various electrical applications. This switch is perfect for controlling circuits with AC voltage up to 660V/AC50Hz or 60Hz, and DC voltage below 400V. Engineered with a main body made from durable zinc alloy and high-grade anti-flame plastic, it ensures longevity and safety. The special silver alloy used in the contacts enhances resistance against electrical erosion, making it a reliable choice for interlocking purposes and signaling. This product is also compatible with electrical appliances operating at AC voltage up to 380V/50Hz and DC voltage below 380V, making it ideal for indication, warning, and emergency signals. The XDL21-CA4322 meets GB/T14048.1 and IEC60947-5-1 standards, and is CE, ISO9001, ROHS, and UL certified for quality assurance.
Specifications
| Feature | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10,000 pushes | Brightness |
| Electrical Life | 500×10,000 pushes | Continuous Working Life |
Additional Information
- Ideal for use in various electrical systems including signaling and control circuits.
- Meets international safety and quality standards.
- Suitable for both indoor and outdoor applications due to its waterproof design.
