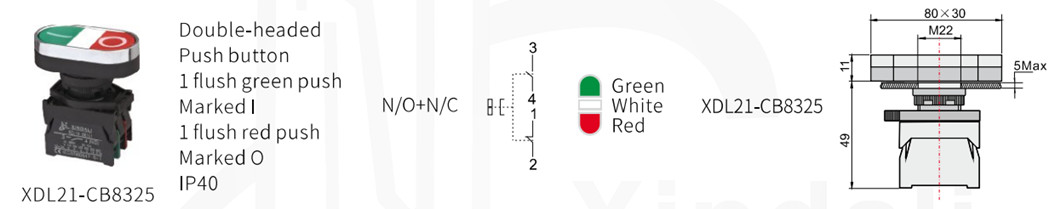

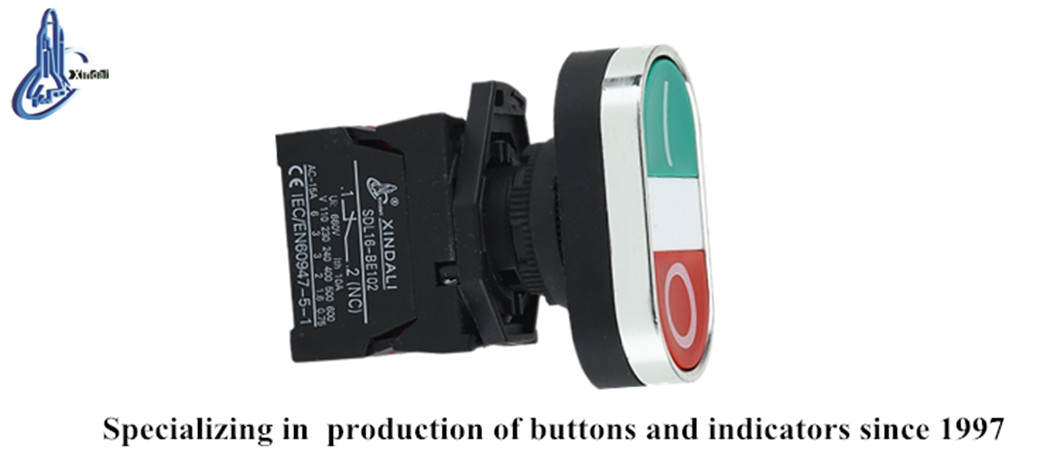

XDL21-CB8325 WATERPROOF IP65 INDUSTRIAL ON OFF INDICATOR LAMP ON OFF PUSH BUTTON SWITCH
Inquire NowDescription
The XDL21-CB8325 Waterproof IP65 Industrial On/Off Indicator Lamp is a robust and reliable push button switch designed for controlling circuits in demanding environments. It can handle AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V. This push button series is ideal for signal control and interlocking applications. Constructed from durable zinc alloy and high-grade anti-flame plastic, the switch features special silver alloy contacts that provide excellent resistance to electrical erosion.
The signal lamp is suitable for electrical circuits up to 380V at 50Hz and DC voltages below 380V, making it perfect for indicating, warning, and emergency signals. All products adhere to GB/T14048.1 and IEC60947-5-1 standards and are certified by CE, ISO9001, ROHS, and UL, ensuring high quality and safety in operation.
Specifications
| Feature | Button Specification | Signal Lamp Specification |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Insulation Resistance | ≥50MΩ | Contact Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Pf Withstand Voltage | AC 2.5KV/min | Voltage Wave |
| Mechanical Life | 100×10000 pushbutton | Brightness |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life |
Additional Information
- Compliance with international safety standards: CE, ISO9001, ROHS, UL certified.
- Designed for industrial applications with an IP65 waterproof rating.
