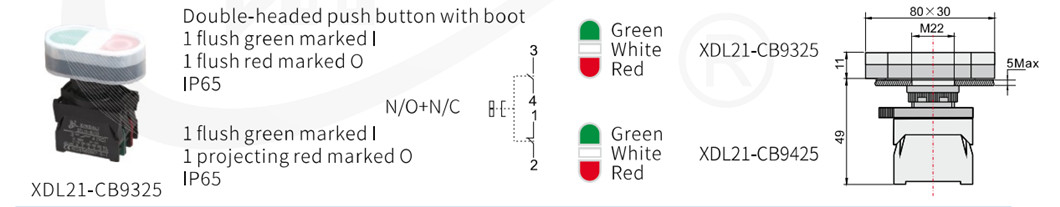

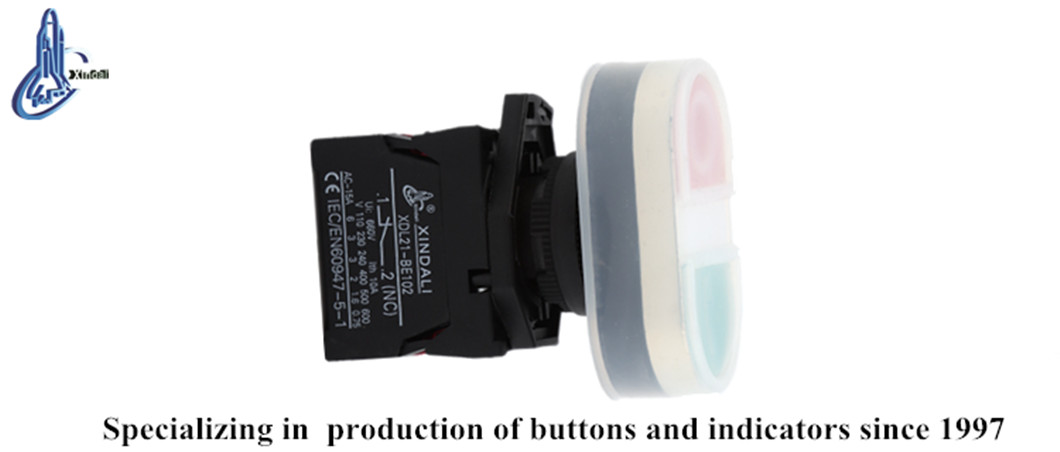

XDL21-CB9325 on off switch waterproof push button switch with protective cap
Inquire NowDescription
The XDL21-CB9325 is a reliable on/off waterproof push button switch, designed to meet the demands of various electrical applications. Crafted with a durable zinc alloy body and high-grade anti-flame plastic, it ensures longevity and safety. This push button switch is capable of controlling AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V, making it suitable for signal control and interlocking purposes. The innovative design incorporates a protective cap, enhancing its waterproof capabilities for outdoor or industrial use. The switch features a special silver alloy contact, providing excellent resistance to electrical erosion, thus ensuring consistent performance. Ideal for use in electrical appliances and as an emergency signal indicator, the XDL21-CB9325 is certifiably safe, complying with GB/T14048.1, IEC60947-5-1 standards and carries CE, ISO9001, ROHS, and UL certifications.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Mechanical Life | 100 x 10,000 pushes | Brightness |
| Electrical Life | 500 x 10,000 pushes | Continuous Working Life |
| Contact Resistance | ≤25 mΩ | Voltage Wave |
| Insulation Resistance | ≥50 MΩ | Pf Withstand Voltage |
| Brightness | 60 cd/m² |
Additional Information
- Waterproof with protective cap for enhanced durability
- Ideal for various electrical applications, including emergency signaling
- Compliant with international safety standards
