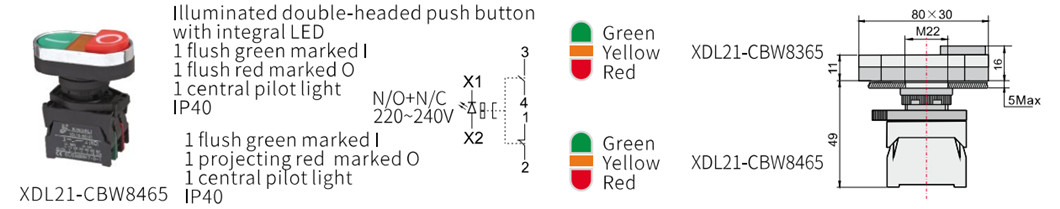

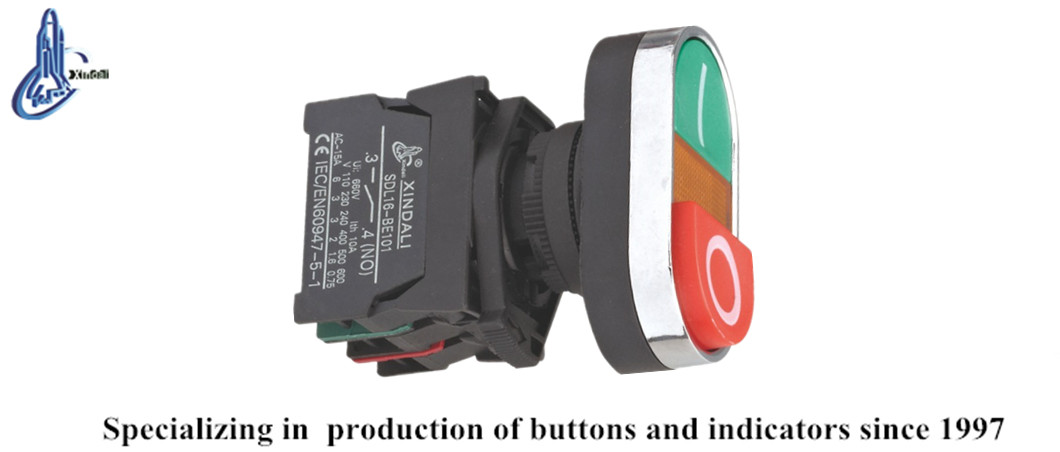

XDL21-CBW8465 on off ip65 double head led elevator push start button switch
Inquire NowDescription
The XDL21-CBW8465 is a robust on/off double head LED elevator push start button switch, designed for a variety of applications in controlling electrical circuits. Capable of handling AC voltage up to 660V at 50Hz or 60Hz and DC voltage below 400V, this switch is perfect for controlling signals and interlocking functionalities. The main body is constructed from durable zinc alloy combined with high-grade anti-flame plastic, ensuring both longevity and safety. The contact features a special silver alloy that provides excellent resistance against electrical erosion, enhancing the longevity of the device.
Furthermore, the integrated LED signal lamp is suitable for electrical appliances operating at AC voltage up to 380V and DC voltage below 380V, making it ideal for indicating, warning, and emergency signals. All components comply with GB/T14048.1 and IEC60947-5-1 standards, ensuring quality and reliability. The XDL21-CBW8465 is CE, ISO9001, ROHS, and UL certified, reflecting its high manufacturing standards.
Specifications
| Feature | Value |
|---|---|
| Rated insulation | AC 600V (50Hz/60Hz) |
| Insulation resistance | ≥50MΩ |
| Conventional heating current | 10A |
| Contact resistance | ≤25MinΩ |
| Pf withstand voltage | AC 2.5KV/min |
| Mechanical life | 100 x 10,000 pushes |
| Electrical life | 500 x 10,000 pushes |
| Brightness | 60cd/m² |
| Continuous working life | 10 x 10,000h |
Additional Information
- Applications: Suitable for elevator systems, control panels, and various electrical circuit applications.
- Certifications: CE, ISO9001, ROHS, UL Certified.
- Durability: High resistance against electrical erosion and flame retardant material for enhanced safety.
