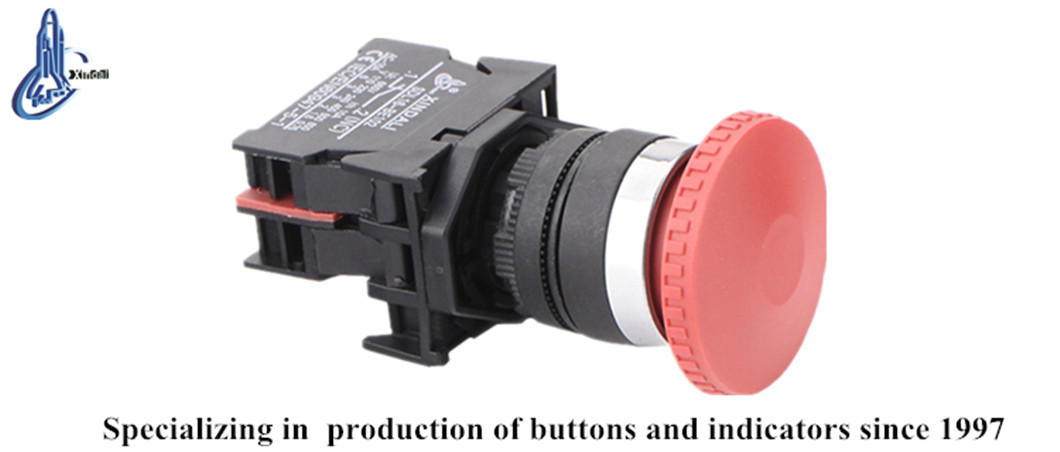

XDL21-CC42 top quality waterproof emergency stop button mushroom button
Inquire NowDescription
The XDL21-CC42 is a premium quality waterproof emergency stop button designed for reliability in hazardous environments. This mushroom-style push button is suitable for controlling circuits with AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V. Crafted from a robust zinc alloy and high-grade anti-flame plastic, it is built to withstand demanding conditions. The button features a unique silver alloy contact, ensuring high resistance to electrical erosion. Additionally, it is compliant with various safety standards, making it an ideal choice for emergency signaling and control applications.

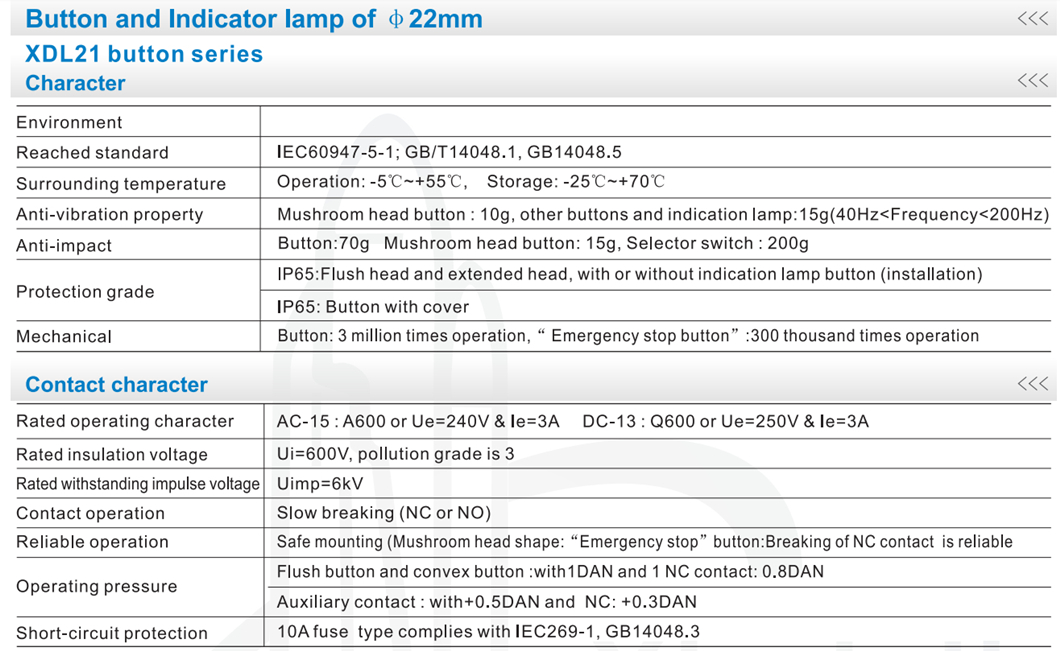

Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10,000 pushbutton, 50×10,000 selector switch |
| Electrical Life | 500×10,000 pushbutton, 25×10,000 selector switch |
| Continuous Working Life | 10×10,000h |
| Brightness | 60cd/m² |
Additional Information
- CE, ISO 9001, ROHS, and UL certified for safety and performance.
- Ideal for use in environments that require robust emergency signaling solutions.
