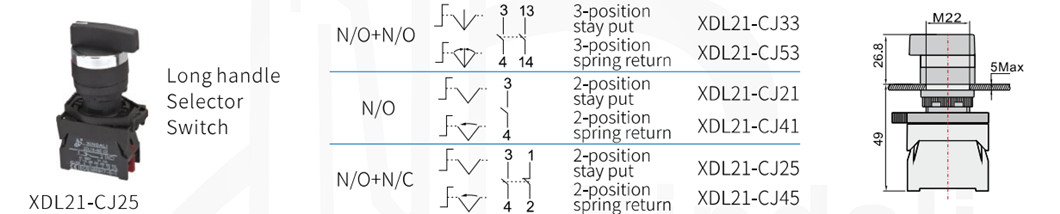

XDL21-CJ25 ip65 long pushbutton switch or switch on off push button
Inquire NowDescription
The XDL21-CJ25 is a versatile IP65-rated long pushbutton switch designed for reliable on/off control in various electrical applications. This push button switch is ideal for circuit control of AC voltages up to 660V (50Hz/60Hz) and DC voltages below 400V. Crafted from durable zinc alloy and advanced anti-flame plastic, it ensures longevity and safety. The special silver alloy contacts resist electrical erosion, making them highly efficient. This switch is perfect for interlocking and controlling signaling, and is complemented by a series of signal lamps suitable for AC voltages up to 380V and DC voltages below 380V, ensuring that your devices operate smoothly and safely.
Specifications
| Parameter | Pushbutton Switch | Signal Lamp |
|---|---|---|
| Rated insulation | AC 600V (50Hz/60Hz) | Insulation resistance |
| Conventional heating current | 10A | Contact resistance |
| Insulation resistance | ≥50MΩ | Pf withstand voltage |
| Contact resistance | ≤25MinΩ | Voltage wave |
| Mechanical life | 100×10000 pushbutton | Brightness |
| Electrical life | 500×10000 pushbutton | Continuous working life |
Additional Information
- Complies with GB/T14048.1 and IEC60947-5-1 standards.
- CE, ISO9001, RoHS, and UL certified for safety and reliability.
