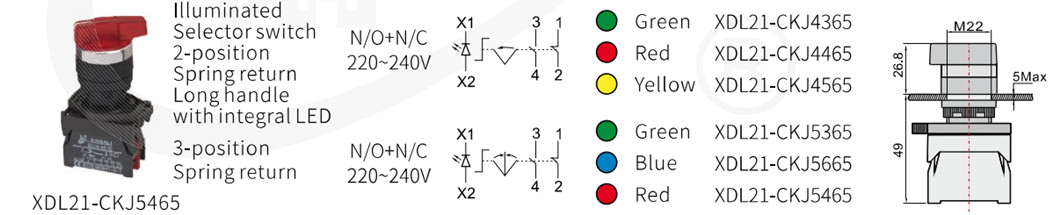

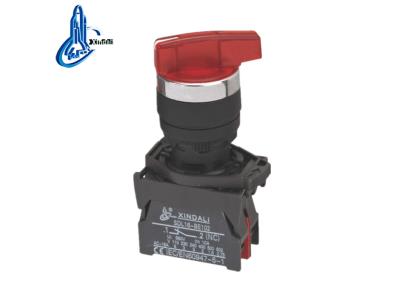

XDL21-CKJ5465 push button switch led lights spring return 2 position lamp switch
Inquire NowDescription
The XDL21-CKJ5465 push button switch is a robust and reliable solution designed for controlling circuits with AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V. This versatile switch is ideal for signal control and interlocking applications, making it a go-to choice for various electrical systems. Crafted from durable zinc alloy and high-grade anti-flame plastic, the switch ensures longevity and safety. The contact features a specialized silver alloy that provides excellent anti-electrical erosion, enhancing performance and reliability. The accompanying signal lamp series operates effectively with electrical appliances circuits of AC voltage up to 380V (50Hz) and DC voltage below 380V, serving as an excellent option for indicating, warning, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards, and are certified by CE, IOS9001, ROHS, and UL.

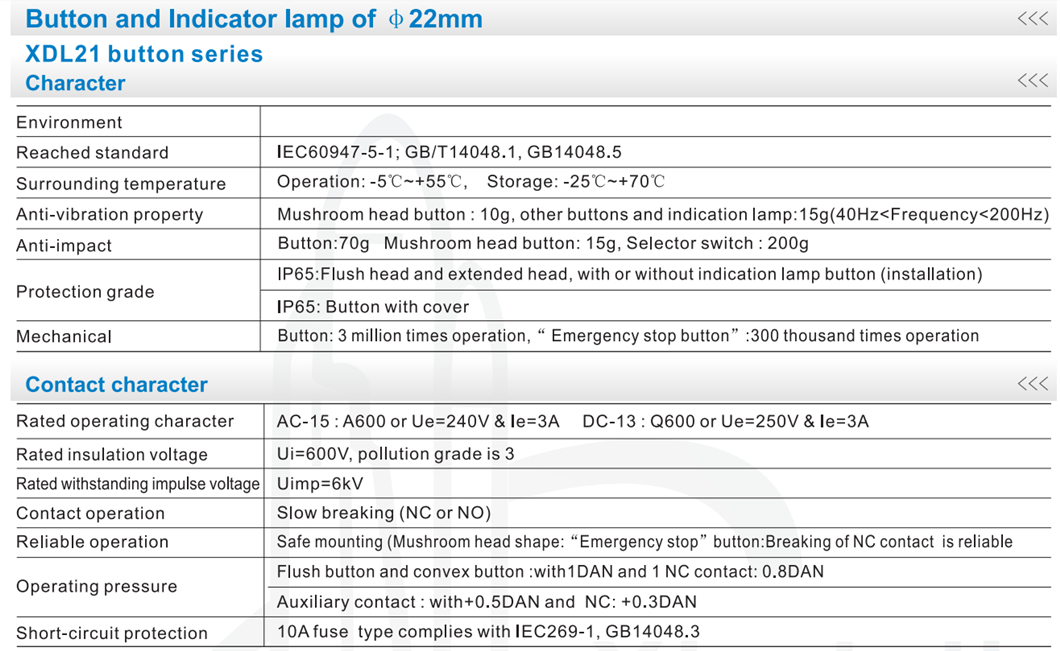

Specifications
| Main Technical Parameter | Push Button | Signal Lamp | ||
|---|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ | |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ | |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage | AC 2.5KV/min | |
| Contact Resistance | ≤25MinΩ | Voltage Wave | ±20% | |
| Mechanical Life | 100×10000 Pushbutton |
50×10000 Selector Switch |
Brightness | 60cd/m² |
| Electrical Life | 500×10000 Pushbutton |
25×10000 Selector Switch |
Continuous Working Life | 10x10000h |
Additional Information
Ensure proper installation and usage for optimal performance and safety. Regular maintenance is recommended to prolong the lifespan of the switch and signal lamp. Adhering to the provided specifications will enhance reliability and efficiency.
