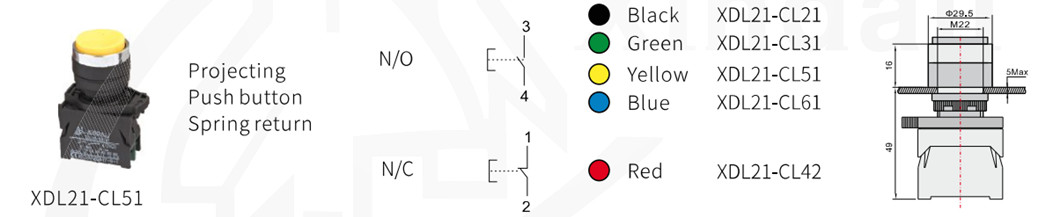

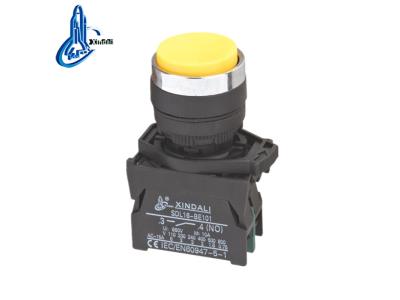

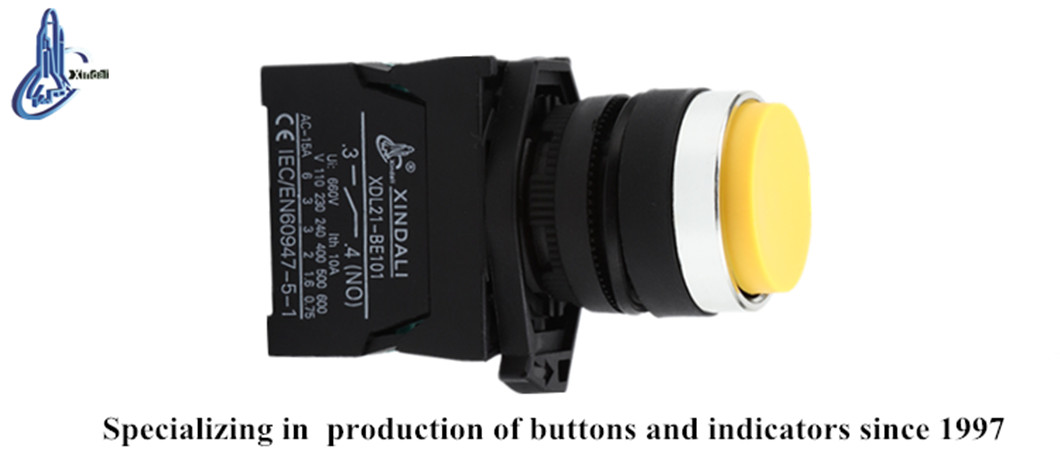

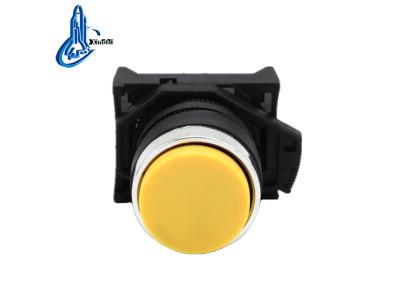

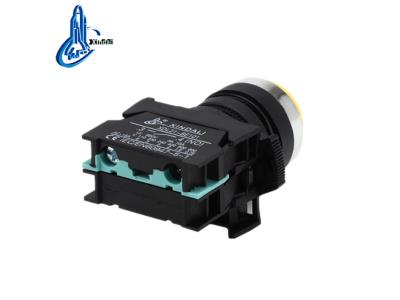

XDL21-CL51 convex head elevator pushbutton waterproof pushbutton switches
Inquire NowDescription
The XDL21-CL51 convex head elevator pushbutton is a reliable waterproof switch designed for durability and performance in demanding environments. Engineered to control AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, this pushbutton is perfect for signal control and interlocking applications. Its main body is crafted from a robust zinc alloy combined with high-grade anti-flame plastic, ensuring safety and longevity. The contacts utilize a special silver alloy, providing exceptional resistance to electrical erosion. Additionally, the XDL21-CL51 series includes signal lamps suited for electrical appliances circuits up to 380V at 50Hz and DC voltage below 380V, making it ideal for warning and emergency signals. All products in this series comply with GB/T14048.1 and IEC60947-5-1 standards and are certified CE, ISO9001, ROHS, and UL.
Specifications
| Main Technical Parameter | Buttons | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| ≥50MΩ | Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ | Pf Withstand Voltage |
| AC 2.5KV/min | Mechanical Life | 100×10000 pushbutton |
| 50×10000 selector switch | Brightness | 60cd/m² |
| Electrical Life | 500×10000 pushbutton | 25×10000 selector switch |
| Continuous Working Life | 10x10000h |
Additional Information
- Designed for high durability and resistance in various applications.
- CE, ISO9001, ROHS, and UL certifications for safety compliance.
