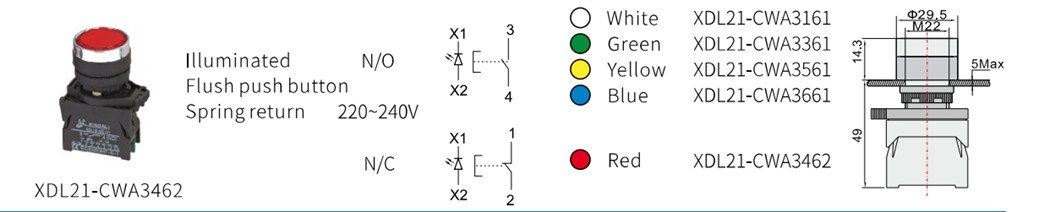

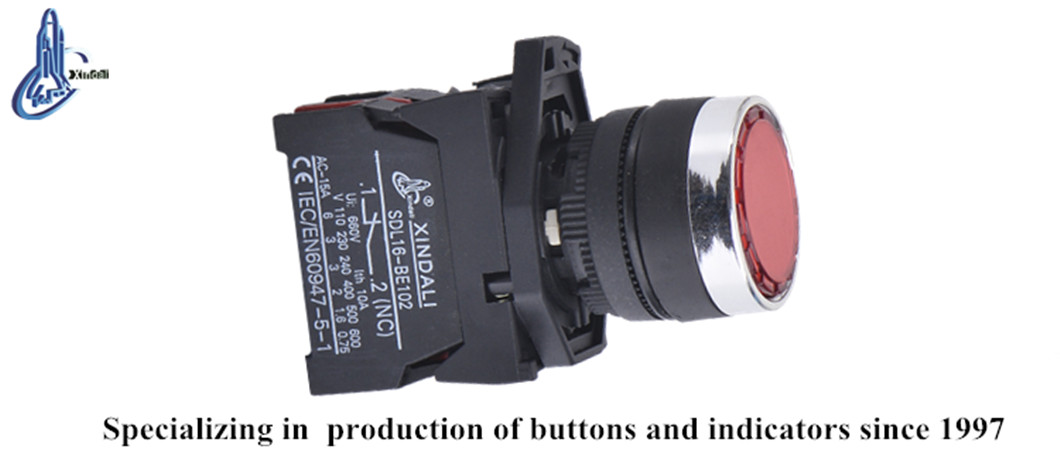

XDL21-CWA3462 waterproof push button switch illuminated push button
Inquire NowDescription
The XDL21-CWA3462 waterproof push button switch is designed for reliable performance in various electrical applications. This illuminated push button switch is perfect for controlling circuits with AC voltage up to 660V at 50Hz or 60Hz, as well as DC voltage below 400V. Crafted from durable zinc alloy and high-grade anti-flame plastic, it ensures longevity and resistance to electrical erosion thanks to its special silver alloy contacts. This versatile device is suitable for signaling, interlocking, and can serve as an indicator for various electrical appliances operating at up to 380V. Compliance with GB/T14048.1 and IEC60947-5-1, as well as certifications like CE, ISO9001, ROHS, and UL, assure you of its quality and safety standards.
Specifications
| Parameter | Value (Push Button) | Value (Signal Lamp) |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| ≥50MΩ | Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ | Pf Withstand Voltage |
| AC 2.5KV/min | Mechanical Life | 100×10000 (pushbutton), 50×10000 (selector switch) |
| Brightness | 60cd/m² | Electrical Life |
| 500×10000 (pushbutton), 25×10000 (selector switch) | Continuous Working Life | 10x10000h |
Additional Information
For optimal performance, it is advisable to regularly check and maintain the electrical connections of the switch. Ensure it is installed in a dry environment to preserve its waterproof features. This product is robust and designed for long-lasting use across various demanding applications.
