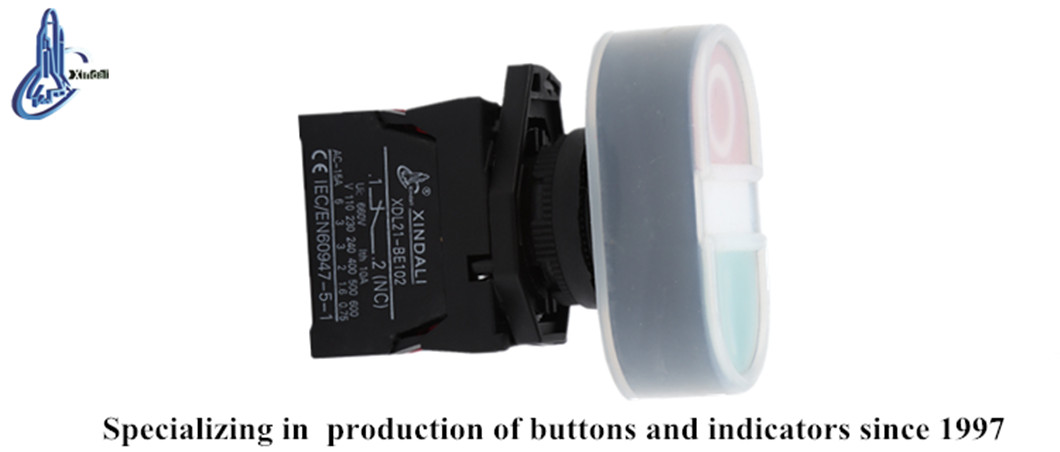

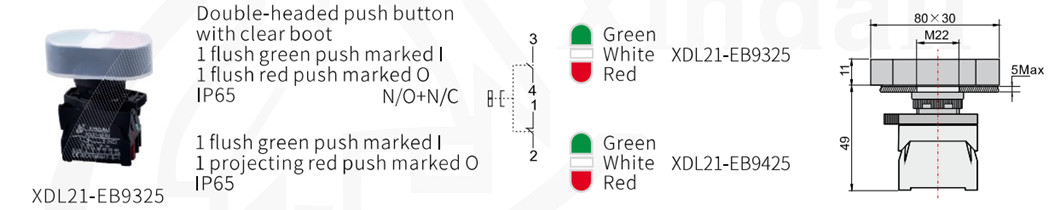

XDL21-EB9325 double-head push button switch with waterproof cover IP65
Inquire NowDescription
The XDL21-EB9325 double-head push button switch is engineered for optimal performance in controlling circuits with AC voltages up to 660V (50Hz/60Hz) and DC voltages below 400V. This robust switch is perfect for signal control and interlocking applications, featuring a waterproof cover rated at IP65 for enhanced durability in various environments.
Constructed from high-quality zinc alloy and flame-resistant plastic, the push button guarantees longevity and resistance to electrical erosion with its specialized silver alloy contacts. This versatile product is also suitable for use with electrical appliances that operate on AC voltages up to 380V (50Hz) and DC voltages under 380V, making it ideal for indicating signals, warning signals, and emergency operations. All components comply with GB/T14048.1 and IEC60947-5-1 standards, carrying certifications such as CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Push Button | Signal Lamp | |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ |
| Mechanical Life | 100×10,000 pushes | Brightness | 60cd/m² |
| Electrical Life | 500×10,000 pushes | Continuous Working Life | 10×10,000 hours |
| Pf Withstand Voltage | AC 2.5KV/min | Voltage Wave | ±20% |
Additional Information
- IP65 waterproof rating for reliable performance in damp environments.
- High-grade materials ensure longevity and high resistance to electrical erosion.
