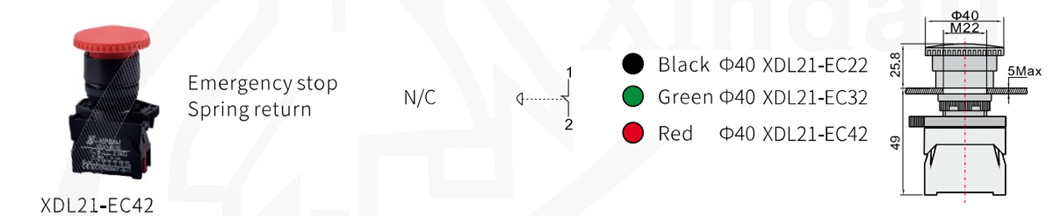

XDL21-EC42 ip65 waterproof mushroom head emergency stop push button switch
Inquire NowDescription

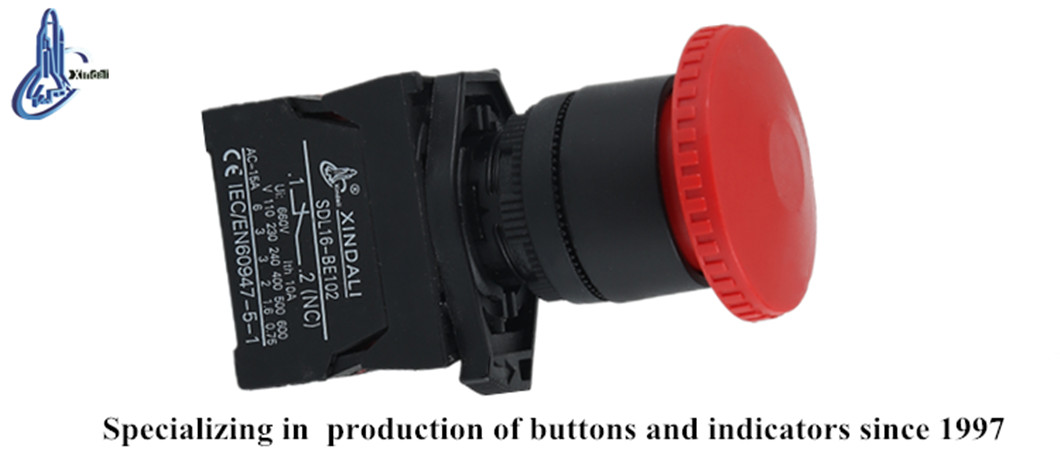

The XDL21-EC42 is a robust IP65 waterproof mushroom head emergency stop push button switch, designed for use in various industrial and commercial applications. Built with a sturdy zinc alloy body and high-grade anti-flame plastic, this switch ensures durability and safety even in harsh environments. It is capable of controlling circuits of AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V, making it an essential component for safety and signaling in electrical systems.
Featuring a special silver alloy contact that enhances anti-electrical erosion, the XDL21-EC42 is ideal for controlling signals, interlocking purposes, and providing emergency stop functions. Its compliance with GB/T14048.1 and IEC60947-5-1 standards, along with certifications such as CE, ISO9001, ROHS, and UL, guarantees its reliability and quality for professional use.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10,000 pushes |
| Electrical Life | 500×10,000 pushes |
| Continuous Working Life | 10×10,000 hours |
| Brightness | 60cd/m² |
Additional Information
- Ideal for emergency signaling, controlling circuits, and interlocking applications.
- Durable and suitable for both indoor and outdoor use due to its waterproof rating.
