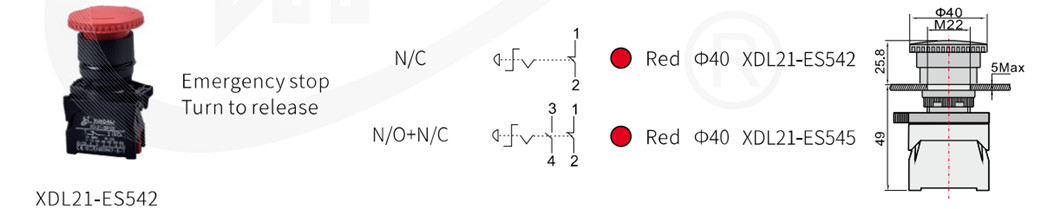

XDL21-ES542 ip65 waterproof red mushroom 40mm emergency switch emergency button
Inquire NowDescription

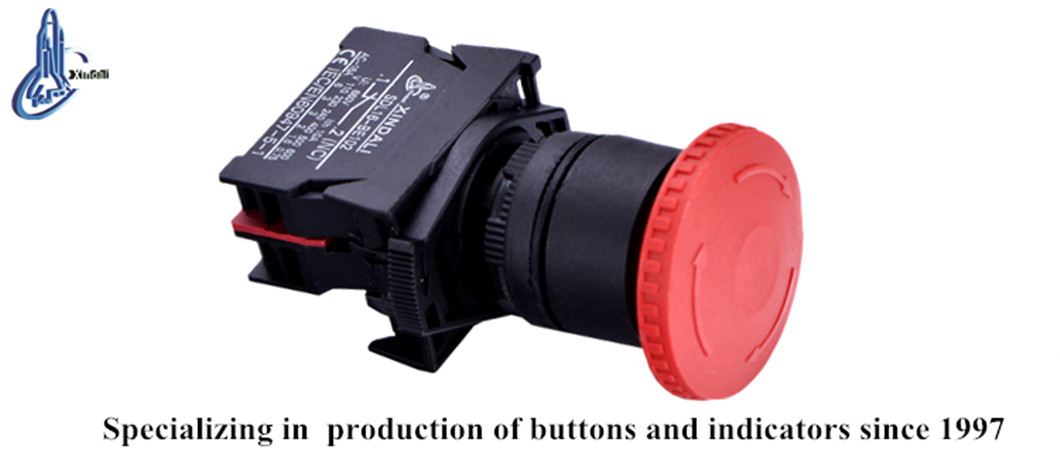

The XDL21-ES542 is a robust and reliable 40mm emergency switch designed for various industrial applications, ensuring safety and efficiency in critical situations. With its vibrant red mushroom design, this switch is easily recognizable, making it an essential component for emergency signaling and control. Rated for both AC voltage up to 660V and DC voltage below 400V, it provides exceptional performance thanks to its zinc alloy body and high-grade anti-flame plastic. The switch is also IP65 waterproof rated, ensuring durability in harsh environments. This makes it ideal for use in factories, warehouses, and outdoor settings where safety is paramount.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 pushbutton |
| Electrical Life | 500×10000 pushbutton |
| Continuous Working Life | 10x10000h |
| Brightness | 60cd/m² |
Additional Information
- Complies with GB/T14048.1 and IEC60947-5-1 standards.
- CE, IOS9001, ROHS, and UL certified for quality assurance.
- Ideal for controlling signaling, interlocking, and emergency operations.
