XDL22-CA42 waterproof power switch push button volt push button switch
Inquire NowDescription
The XDL22-CA42 Waterproof Power Switch Push Button is an essential component for controlling AC and DC circuits in a wide range of applications. Designed to handle AC voltage up to 660V and DC voltage below 400V, this push button switch is perfect for signaling and interlocking purposes. Constructed from durable zinc alloy and high-grade anti-flame plastic, it features special silver alloy contacts that provide exceptional resistance to electrical erosion, ensuring longevity and reliability. Its robust design adheres to strict industry standards, making it suitable for various environments.
This product is not only functional but also versatile, featuring signal lamps compatible with electrical circuit voltages up to 380V. Ideal for indicating, warning, and emergency signals, the XDL22-CA42 is CE, ISO 9001, ROHS, and UL certified, ensuring compliance with international safety and performance standards.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating temperature: -5℃ to +55℃ Storage temperature: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
- Ideal for a variety of signaling applications including indicating, warning, and emergency signals.
- Complies with international safety and performance standards.

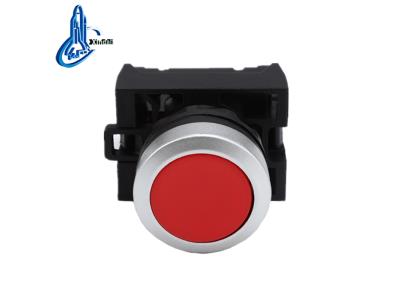

Product Show
