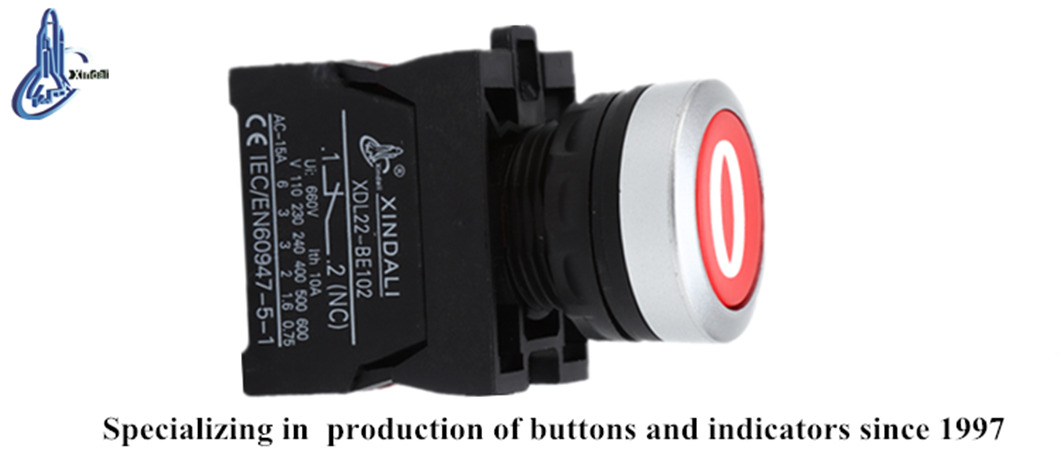

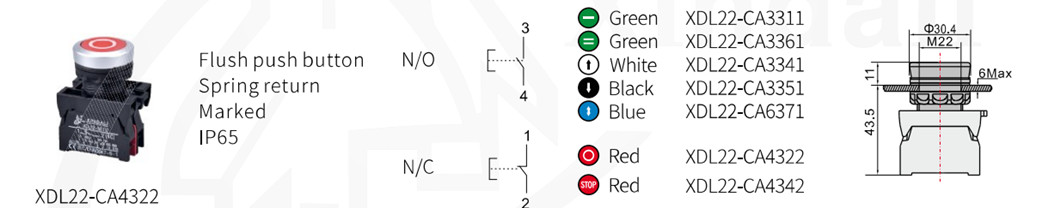

XDL22-CA4322 waterproof flush head push button switch with symbol logo
Inquire NowDescription
The XDL22-CA4322 Waterproof Flush Head Push Button Switch is designed for reliability and performance in various electrical applications. This switch is capable of controlling AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, making it suitable for signal control and interlocking purposes. Crafted from a robust zinc alloy and high-grade anti-flame plastic, it ensures durability while providing exceptional resistance to electrical erosion thanks to its silver alloy contacts. Ideal for use in electrical appliances circuits, this switch can handle AC voltage up to 380V and DC voltage below 380V for indicating, warning, or emergency signals. Adhering to international standards, including GB/T14048.1 and IEC60947-5-1, it proudly boasts CE, ISO9001, ROHS, and UL certifications.
Specifications
| Feature | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ ~ +55℃, Storage: -25℃ ~ +70℃ |
| Operating Humidity | 35% ~ 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10, Emergency Button: 30*10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Product Show
