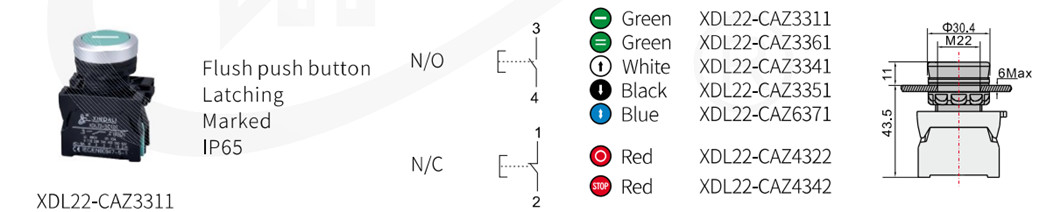

XDL22-CAZ3311 industrial electrical symbols image green ip67 push button switch
Inquire NowDescription
The XDL22-CAZ3311 is a robust industrial push button switch designed for controlling AC voltages up to 660V and DC voltages below 400V. This versatile switch is suitable for a variety of applications, including signal control and interlocking systems. Constructed from durable zinc alloy and high-grade anti-flame plastic, it ensures longevity and safety in industrial settings. The contact is made of a special silver alloy to withstand high electrical erosion, providing reliability over time. Additionally, the integrated signal lamps are effective for indicating, warning, and emergency signaling purposes, compliant with various national and international standards.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
| Humidity | Operating and Storage: 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 operations Emergency Button: 30,000 operations |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
- CE, ISO9001, ROHS, and UL certified for safety standards.

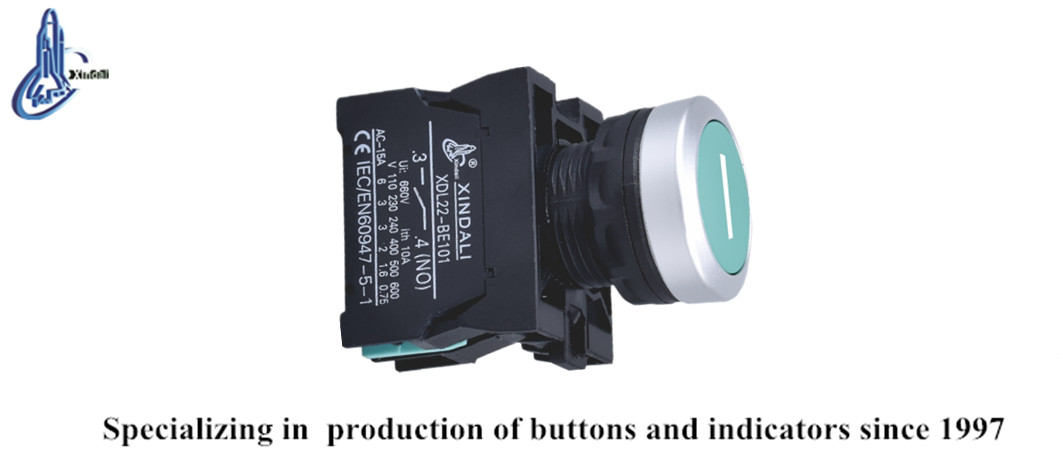

Product Show
