XDL22-CB8325 waterproof IP67 on off button 22mm double push button switch
Inquire NowDescription

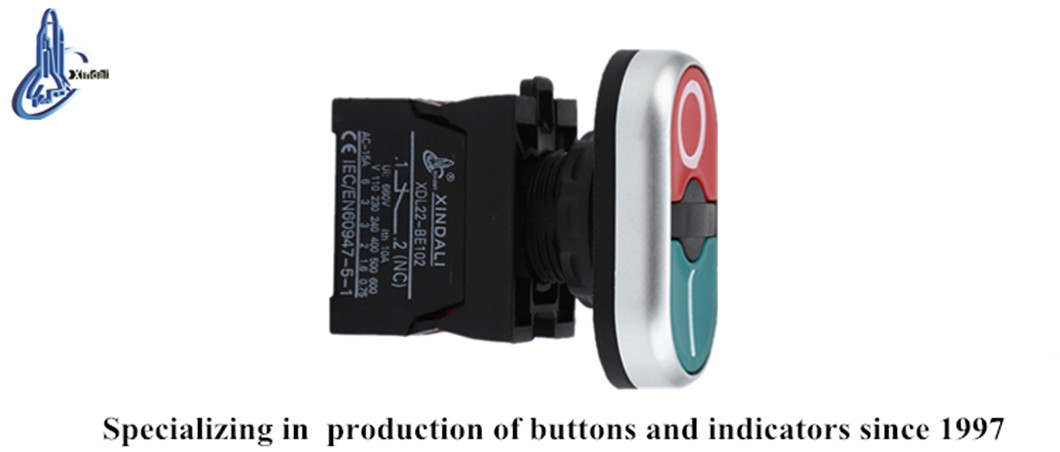

The XDL22-CB8325 is a robust and reliable 22mm double push button switch designed for various applications where waterproofing is essential. Boasting an impressive IP67 rating, this switch ensures optimal performance even in challenging environments. Capable of controlling AC voltage up to 660V/AC50Hz or 60Hz and DC voltage below 400V, it is perfect for controlling signals and interlocking systems. The switch’s casing is crafted from durable zinc alloy and high-grade anti-flame plastic, while its contact components utilize a specialized silver alloy to resist electrical erosion. This makes the XDL22-CB8325 ideal for use in electrical appliances and as an emergency or warning signal.
Compliance with GB/T14048.1 and IEC60947-5-1 standards, along with certifications including CE, ISO9001, ROHS, and UL, underscores the quality and safety of this product.
Specifications
Characteristic | Details |
---|---|
Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
Ambient temperature | Operating: -5℃ to +55℃ Storage: -25℃ to +70℃ |
Operating and storage air relative humidity | 35% to 85% RH |
Vibration frequency | Conforming to IEC 68-2-6 |
Impact resistance | Conforming to IEC 68-2-27 |
Pollution grade | 3 |
Installation sort | Class III |
Protection grade | Ordinary: IP40 IP54 Protection: IP65 IP66 IP67 IP68 |
Mechanical life | Pushbutton: 300*10 push and pull type Emergency button: 30*10 |
Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
