XDL22-CBW8365 ip68 on off switch led light double head spring button
Inquire NowDescription
The XDL22-CBW8365 IP68 On/Off Switch LED Light with a double head spring button is designed for effective circuit control. This robust push button series is suitable for AC voltage up to 660V/50Hz or 60Hz, and DC voltage below 400V, making it ideal for both signal control and interlocking applications. Crafted from a durable zinc alloy and high-grade anti-flame plastic, the button features contacts made of special silver alloy to enhance resistance to electrical erosion. The integrated signal lamp operates within electrical appliance circuits of AC voltage up to 380V/50Hz and DC voltage below 380V, serving as an excellent solution for indicating, warning, or emergency signals. This product complies with GB/T14048.1 and IEC60947-5-1 standards, and is certified by CE, ISO9001, RoHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1: GB/T14048. GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
This IP68 rated switch is designed for high durability and reliability in various environmental conditions, ensuring safety and efficiency in operation. Ideal for industrial applications where robust performance is crucial.

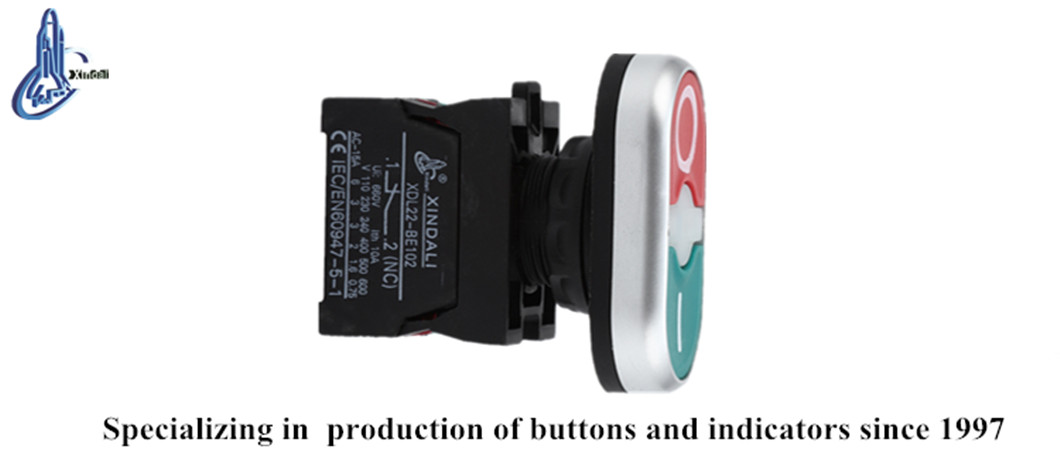

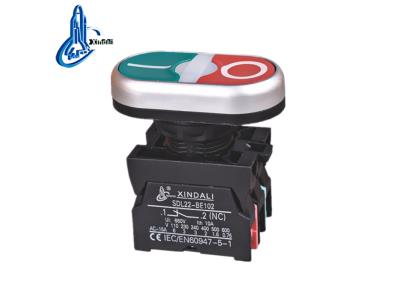

Product Show
