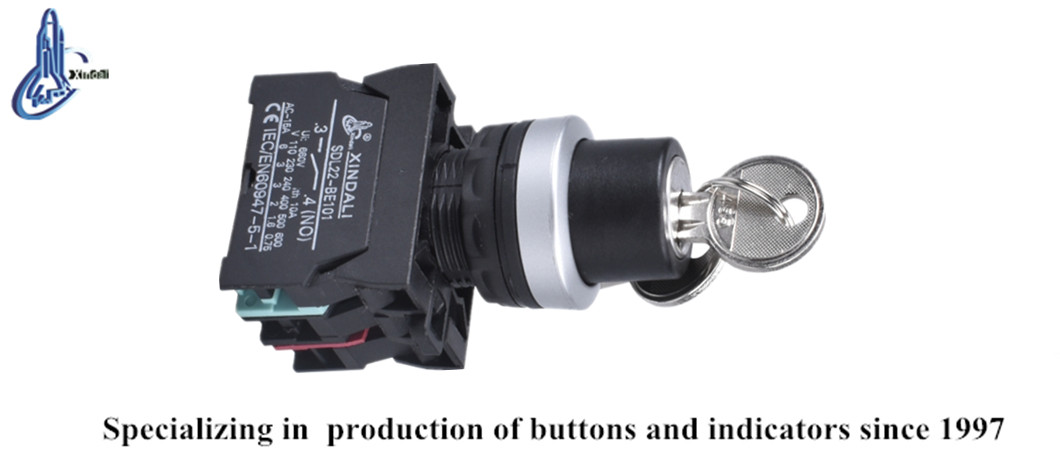

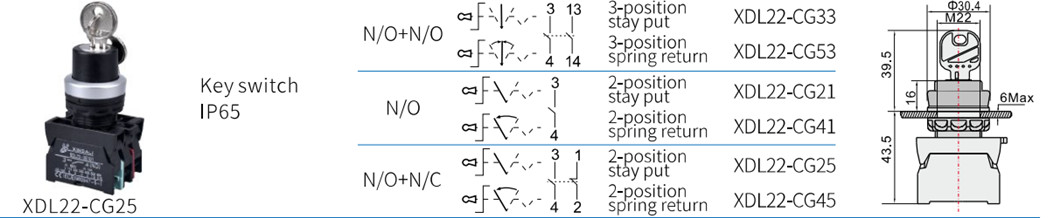

XDL22-CG25 industrial elevator 3 positions key lock push button switch
Inquire NowDescription
The XDL22-CG25 Industrial Elevator 3 Positions Key Lock Push Button Switch is designed for robust and efficient control in industrial applications. This switch manages AC voltages up to 660V and DC voltages below 400V, making it versatile for various electrical systems. Its body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring long-lasting performance even in demanding environments. The special silver alloy contacts provide exceptional resistance to electrical erosion, enhancing reliability. Ideal for controlling signals, interlocking systems, and providing visual indications through integrated signal lamps, this product meets rigorous standards of GB/T14048.1 and IEC60947-5-1, and is certified by CE, IOS9001, ROHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
- Ideal for use in industrial environments where control and safety are priorities.
- Applications include controlling elevator systems and providing emergency signals.
