XDL22-CK2365 3 position push button switch with position led indicator
Inquire NowDescription
The XDL22-CK2365 is a sophisticated 3-position push button switch designed with a bright LED indicator for enhanced visibility. This versatile switch operates efficiently in controlling AC voltage circuits up to 660V/AC50Hz or 60Hz and DC voltage up to 400V. Perfect for signal control and interlocking purposes, the push button is crafted from durable zinc alloy and high-grade anti-flame plastic. Its special silver alloy contacts ensure high resistance against electrical erosion, making it highly reliable for various applications including indicating signals, warning signals, and emergency signals. This product adheres to international safety standards, including GB/T14048.1 and IEC60947-5-1, and is CE, ISO9001, ROHS, and UL certified, ensuring quality and safety.
Specifications
| Attribute | Details |
|---|---|
| Conforming to standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation type | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |

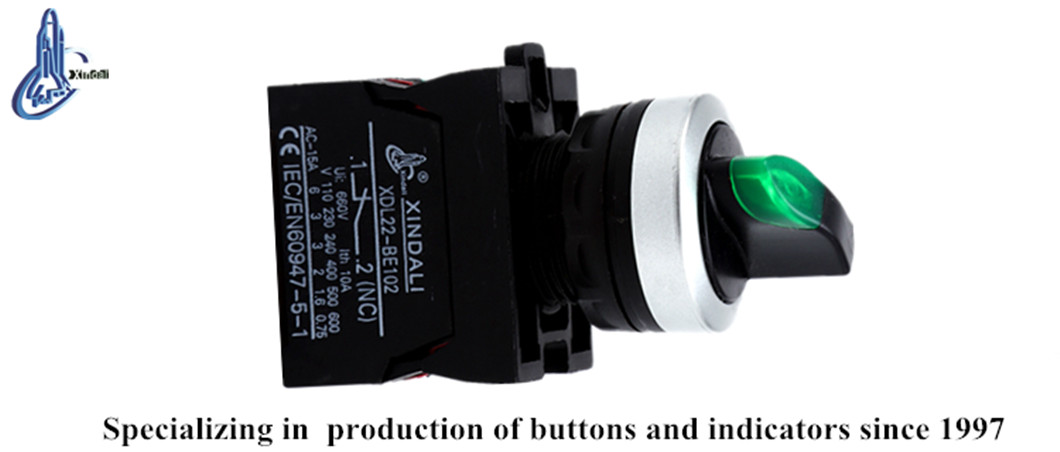

Product Show
