XDL22-CLZ3311 waterproof stay put convex head waterproof ip67 switches
Inquire NowDescription
The XDL22-CLZ3311 waterproof stay-put convex head switches are engineered for durability and reliability in demanding environments. Featuring an IP67 waterproof rating, these switches can withstand harsh conditions while ensuring optimal performance. Designed for controlling AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V, these push-button switches are perfect for signal control and interlocking applications. The main body is crafted from robust zinc alloy and high-grade, anti-flame plastic, while the special silver alloy contacts provide exceptional resistance against electrical erosion. Additionally, the integrated signal lamp is suitable for electrical circuits up to 380V, making it ideal for indicating, warning, or emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are certified under CE, IOS9001, ROHS, and UL standards.
Specifications
| Attribute | Details |
|---|---|
| Conforming to Standards | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient Temperature | Operating: -5℃~+55℃ Storage: -25℃~+70℃ |
| Operating and Storage Relative Humidity | 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300 x 10 Emergency Button: 30 x 10 |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

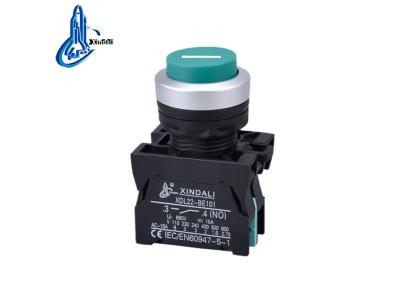

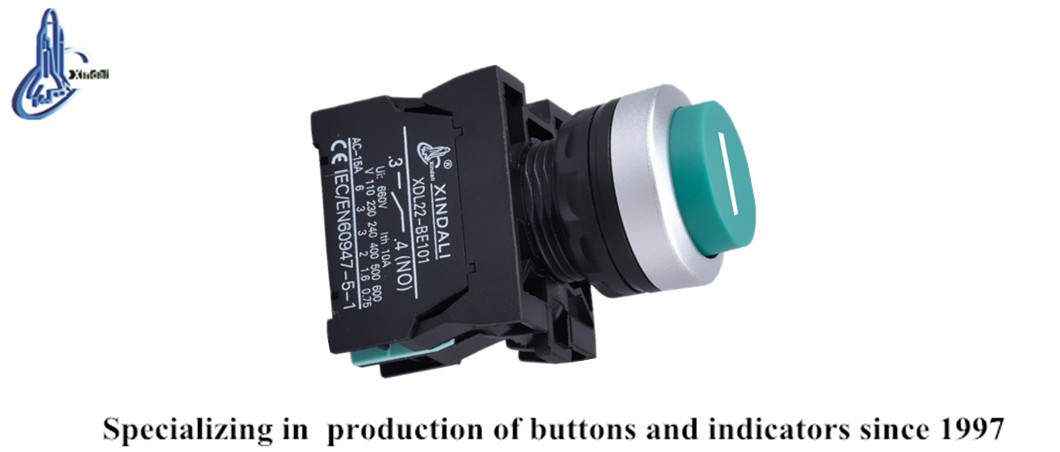

Product Show
