XDL22-CW3462 momentary led push button switch waterproof ip67 push button switch
Inquire NowDescription
The XDL22-CW3462 momentary LED push button switch is designed for reliable performance in demanding environments. With a waterproof rating of IP67, this switch is perfect for applications requiring durability and weather resistance. It is engineered to control circuits with AC voltage up to 660V at 50Hz or 60Hz and DC voltage below 400V. The robust construction features a zinc alloy body and high-grade anti-flame plastic, offering superior resilience against electrical erosion thanks to its special silver alloy contacts. This versatile switch is ideal for signaling, indicating, and emergency purposes, complying with multiple international standards including GB/T14048.1 and IEC60947-5-1, and is certified by CE, ISO9001, ROHS, and UL.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
Perfect for a wide range of applications, the XDL22-CW3462 momentary LED push button switch offers exceptional performance and reliability in various environments. Ensure the switch is installed according to its specifications for optimal functionality.

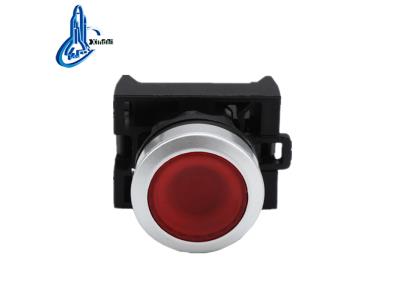

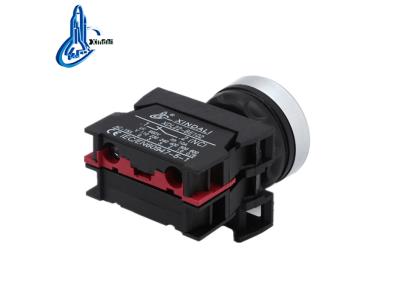

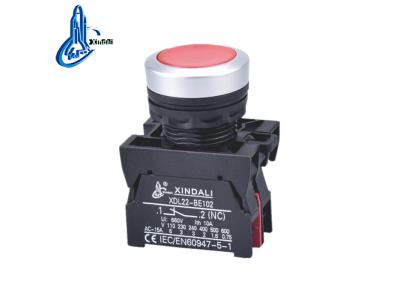

Product Show
