XDL22-CWC32 led emergency light iluminated waterproof emergency stop switch
Inquire NowDescription
The XDL22-CWC32 LED Emergency Light Illuminated Waterproof Emergency Stop Switch is designed for safety and reliability in various electrical environments. Suitable for controlling AC voltage up to 660V/50Hz or 60Hz and DC voltage below 400V, this push button series is perfect for controlling signals and interlocking purposes. The main body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The special silver alloy contacts provide exceptional resistance to electrical erosion, enhancing the reliability of your electrical circuits. With its ability to operate under both ambient and extreme conditions, this emergency stop switch is ideal for indicating, warning, and emergency signaling in any electrical setup. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are CE, IOS9001, ROHS, and UL certified.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | Operating temperature: -5℃ to +55℃ Storage temperature: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35~85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54 Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Pushbutton: 300*10 push and pull type Emergency button: 30*10 |
| Fastening torque | 0.8 Nm (MAX: 1.2 Nm) |
Additional Information
For optimal performance, ensure proper installation according to the specified standards and guidelines. Regular maintenance is recommended to uphold functionality and safety standards.

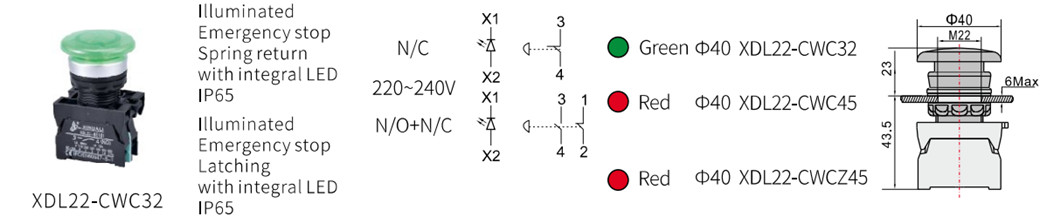

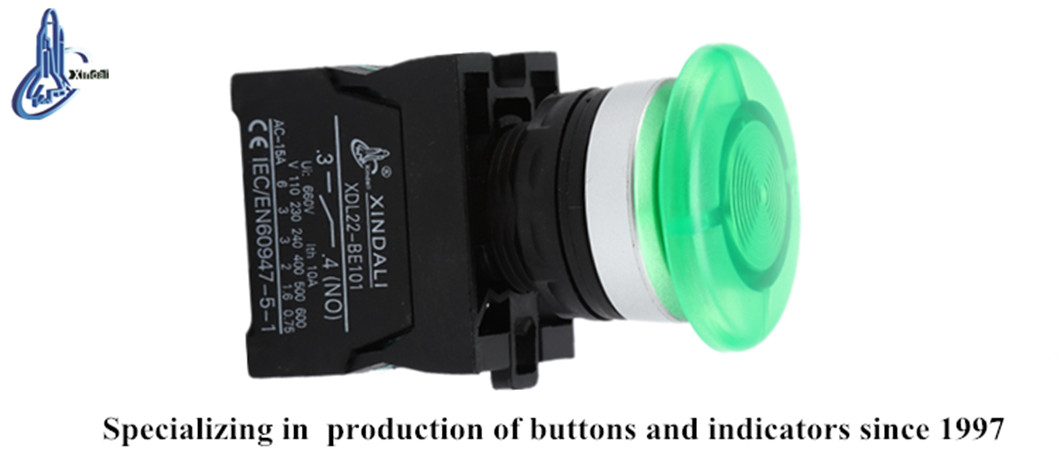

Product Show
