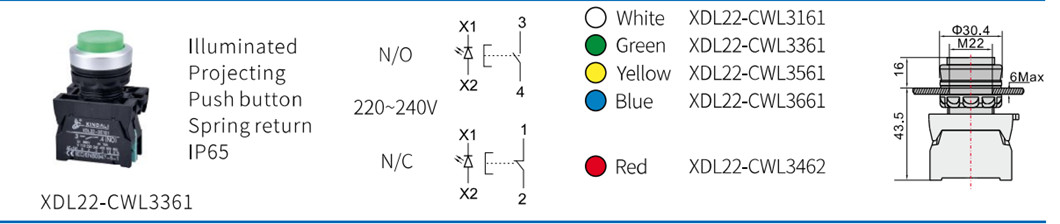

XDL22-CWL3361 light led push button switch waterproof ip67 push button switch
Inquire NowDescription
The XDL22-CWL3361 LED Push Button Switch is a state-of-the-art waterproof switch designed for robust performance in demanding environments. With an IP67 rating, this switch is ideal for controlling circuits with AC voltage up to 660V and DC voltage below 400V. The switch’s durable construction features a body made of zinc alloy and high-grade anti-flame plastic, ensuring reliability and longevity. Its special silver alloy contacts provide exceptional resistance to electrical erosion, making it suitable for a variety of applications, including indicating signals, warning signals, and emergency alerts. The product meets rigorous industry standards, including GB/T14048.1 and IEC60947-5-1, and is CE, ISO9001, RoHS, and UL certified for quality assurance.
Specifications
| Characteristic | Details |
|---|---|
| Conforming to standards as | IEC60947-5-1; GB/T14048; GB14048.5 |
| Ambient temperature | Operating: -5℃ to +55℃; Storage: -25℃ to +70℃ |
| Operating and storage air relative humidity | 35% to 85% RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class III |
| Protection grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical life | Push button: 300*10; Emergency button: 30*10 |
| Fastening torque | 0.8Nm (MAX: 1.2Nm) |

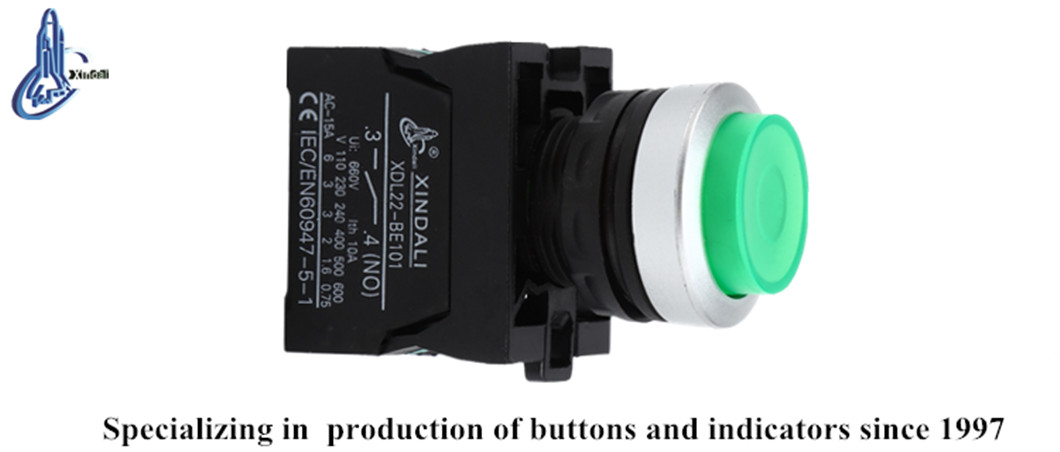

Product Show
