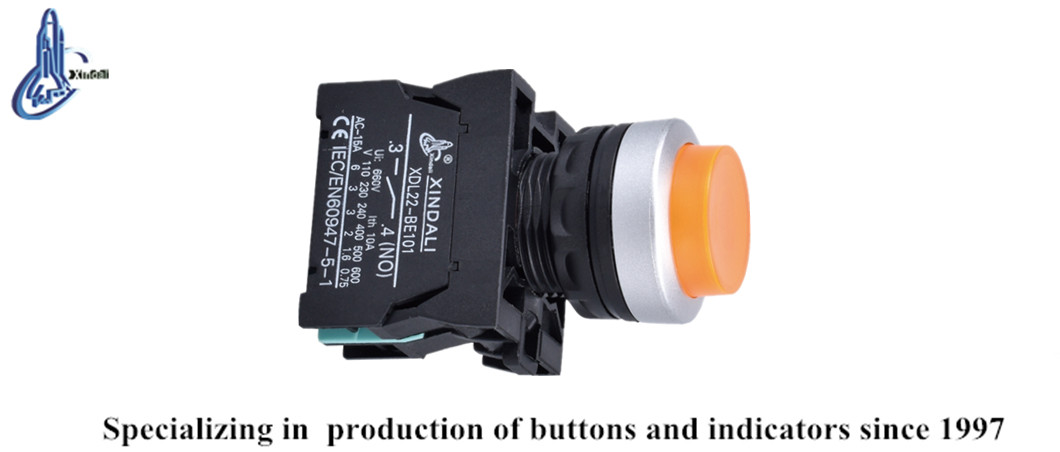

XDL22-CWLZ3561 convex light led push button switch waterproof ip67 push button switch

Inquire Now

Description

The XDL22-CWLZ3561 convex light LED push button switch is designed for versatility and reliability in controlling electrical circuits. This waterproof IP67-rated switch can handle AC voltages up to 660V and DC voltages below 400V, making it suitable for various applications. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features a silver alloy contact that provides exceptional resistance to electrical erosion. This push button switch is ideal for use as an indicating or warning signal in electrical appliances, ensuring safety and efficiency in operation.

Specifications

Characteristic Details
Conforming to Standards IEC60947-5-1, GB/T14048, GB14048.5
Ambient Temperature Operating: -5℃ to +55℃; Storage: -25℃ to +70℃
Humidity Operating and storage air relative humidity: 35% to 85% RH
Vibration Frequency Conforming to IEC 68-2-6
Impact Resistance Conforming to IEC 68-2-27
Pollution Grade 3
Installation Type Class III
Protection Grade Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68
Mechanical Life Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles
Fastening Torque 0.8Nm (MAX: 1.2Nm)

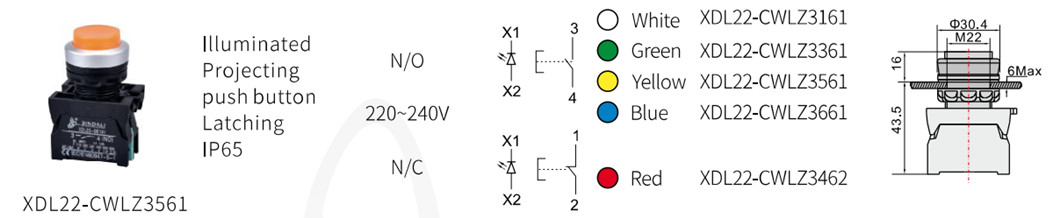

Product Show
