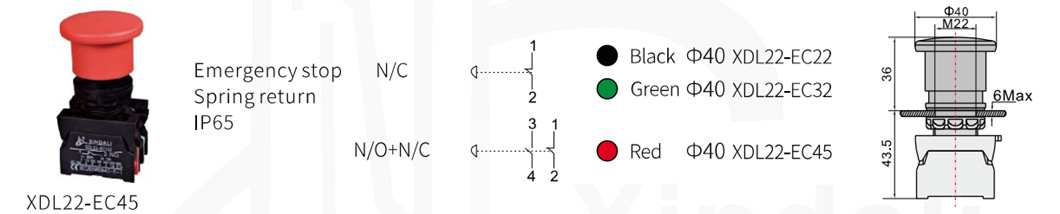

XDL22-EC45 waterproof waterproof ip67 switch button mushroom equipment spring button
Inquire NowDescription
The XDL22-EC45 waterproof switch button is a versatile push button designed for controlling AC voltages up to 660V (50Hz or 60Hz) and DC voltages below 400V. Ideal for signaling and interlocking purposes, this device utilizes a robust zinc alloy body combined with high-grade anti-flame plastics, ensuring longevity and safety. The contacts are made from a special silver alloy, providing exceptional resistance against electrical erosion. Whether used as an indicating, warning, or emergency signal, this product meets rigorous compliance standards including GB/T14048.1 and IEC60947-5-1, and is certified with CE, ISO9001, RoHS, and UL ratings.
Specifications
| Feature | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Operating Temperature | -5℃ to +55℃ |
| Storage Temperature | -25℃ to +70℃ |
| Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Sort | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Push button: 300*10; Emergency button: 30*10 |
| Fastening Torque | 0.8Nm (MAX: 1.2Nm) |
Additional Information
This push button switch is suitable for a variety of applications, providing reliable performance in both industrial and commercial environments. It is crucial to follow proper installation guidelines to ensure optimal operation and safety.

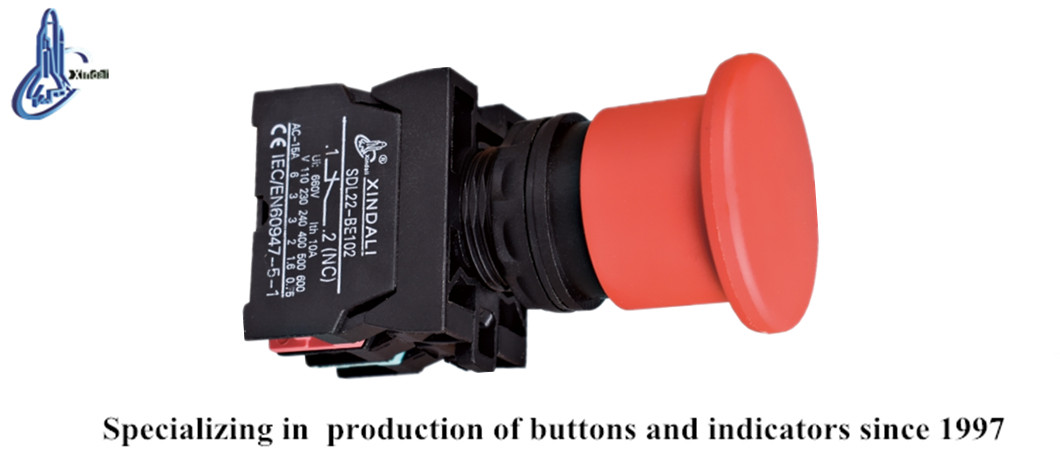

Product Show
