XDL22-ES145 Mushroom Button Selector Estop Pushbutton Switch with Key

Product Description

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.

Basic Characteristic

Conforming to standards as

IEC60947-5-1:GB/T14048.GB14048.5

Ambient temperature

operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃

Operating and storage air relative humidity

35~85%RH

Vibration frequency

Conforming to IEC 68-2-6

Impact resistance

Conforming to IEC 68-2-27

Pollution grade

3

Installation sort

ClassⅢ

Protection grade

Ordinary:IP40 IP54

Protection:IP65 IP66 IP67 IP68

Mechanical life

pushbutton:300*10 push and pull type
emergency button:30*10

Fastening torque

0.8Nm(MAX:1.2Nm)

Product Show

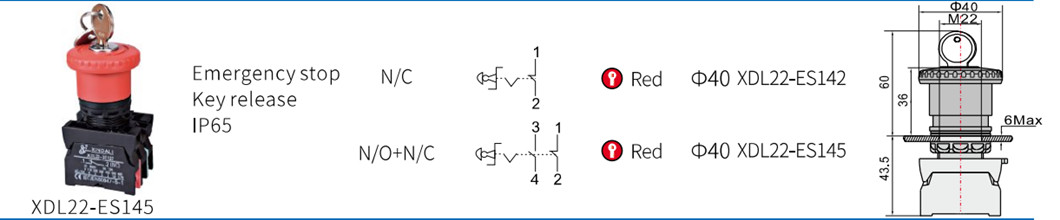

XDL22 PART_副本.jpg

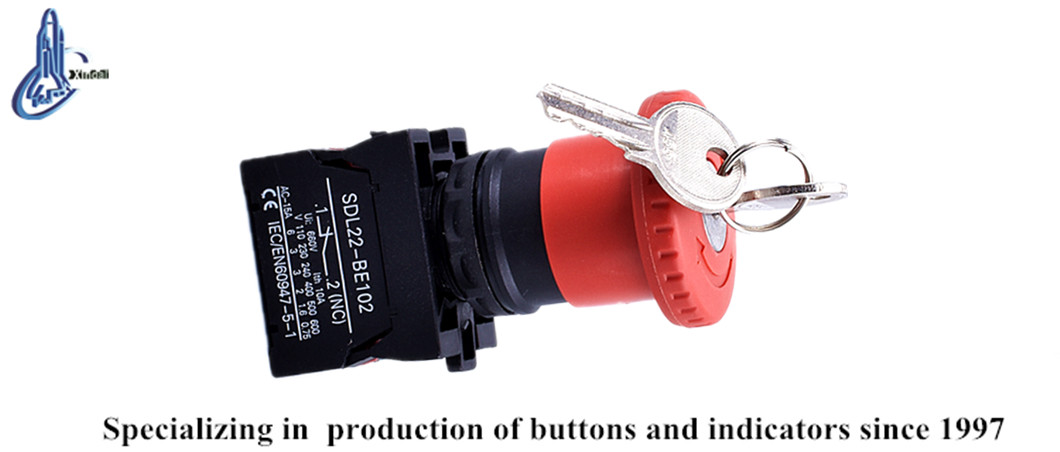

XDL22-ES145 part_副本.jpg
