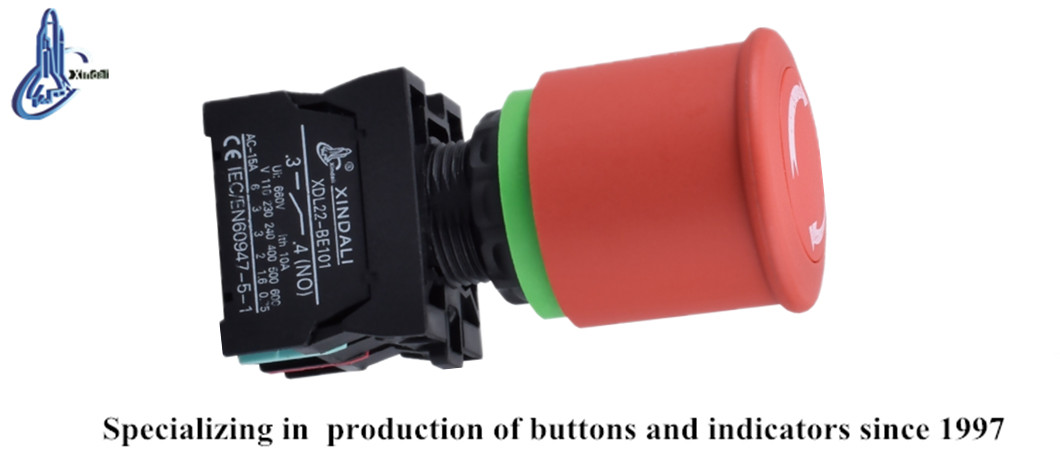

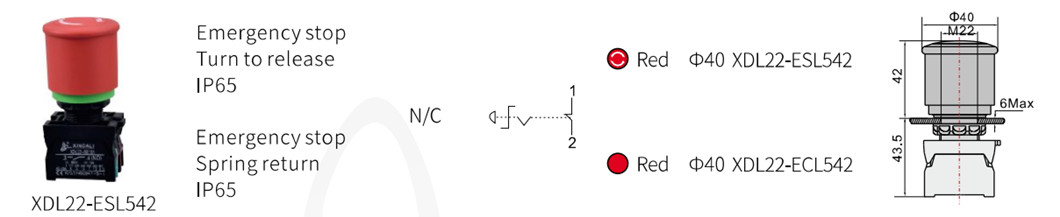

XDL22-ESL542 mushroom emergency turn to release estop push button switch
Inquire NowDescription
The XDL22-ESL542 Mushroom Emergency Turn to Release Estop Push Button Switch is a critical component designed for safety and control in electrical circuits. This push button switch is engineered to handle AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, making it ideal for controlling signals and interlocking systems. Crafted from durable zinc alloy and high-grade anti-flame plastic, it features a special silver alloy contact that offers exceptional resistance to electrical erosion. This switch is not only reliable but also compliant with international standards, ensuring safe operation in various environments. With its suitability for use as an indicating, warning, and emergency signal, this push button switch is essential for enhancing safety in electrical applications.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃ to +55℃, Storage: -25℃ to +70℃ |
| Operating and Storage Humidity | 35% to 85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300*10 cycles, Emergency Button: 30*10 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |
Product Show
