Description
The XDL22-ETB545 is a highly reliable and durable waterproof mushroom head e-stop pushbutton designed for critical control applications. With an impressive IP67 rating, this pushbutton is engineered to withstand harsh environmental conditions, making it ideal for outdoor or industrial settings. It accommodates AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, ensuring versatile functionality for controlling signals and interlocking systems.
Constructed with a robust zinc alloy body and high-grade anti-flame plastic, the XDL22-ETB545 is built to last. The contacts are made from a special silver alloy, providing excellent resistance against electrical erosion. Additionally, this versatile pushbutton can be utilized as an indicating signal, warning signal, or emergency signal, complying with GB/T14048.1 and IEC60947-5-1 standards, and certified by CE, ISO9001, ROHS, and UL.
Specifications
| Attribute | Details |
|---|---|
| Conforming Standards | IEC60947-5-1, GB/T14048, GB14048.5 |
| Ambient Temperature | Operating: -5℃~+55℃, Storage: -25℃~+70℃ |
| Relative Humidity | 35~85% RH |
| Vibration Frequency | Conforming to IEC 68-2-6 |
| Impact Resistance | Conforming to IEC 68-2-27 |
| Pollution Grade | 3 |
| Installation Type | Class III |
| Protection Grade | Ordinary: IP40, IP54; Protection: IP65, IP66, IP67, IP68 |
| Mechanical Life | Pushbutton: 300,000 cycles; Emergency button: 30,000 cycles |
| Fastening Torque | 0.8 Nm (MAX: 1.2 Nm) |

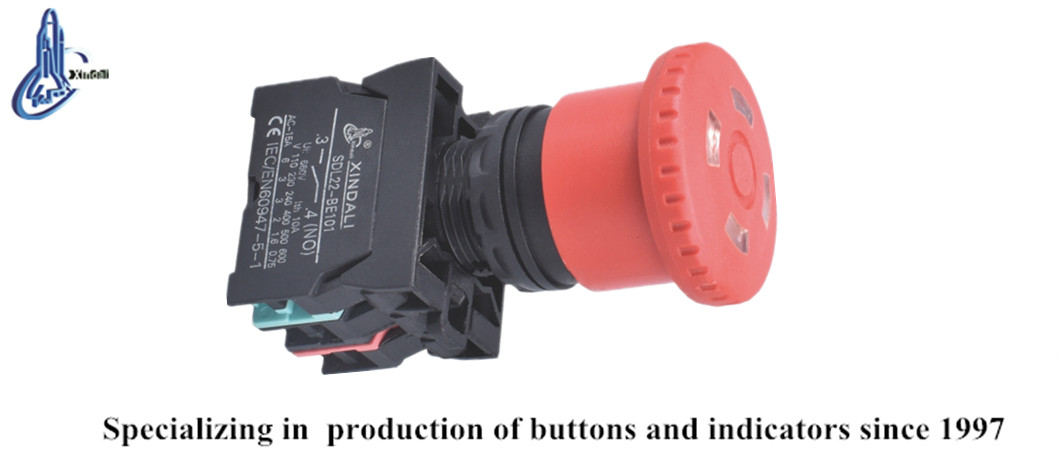

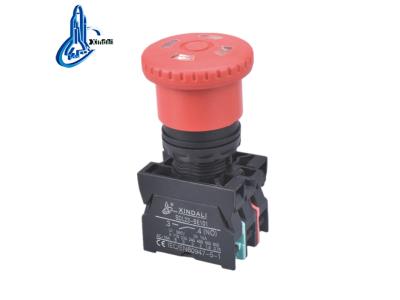

Product Show
