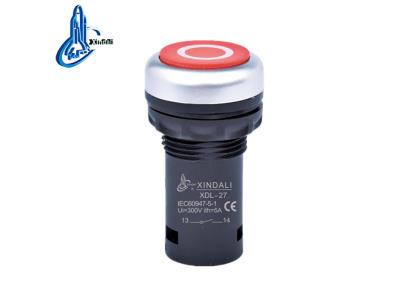

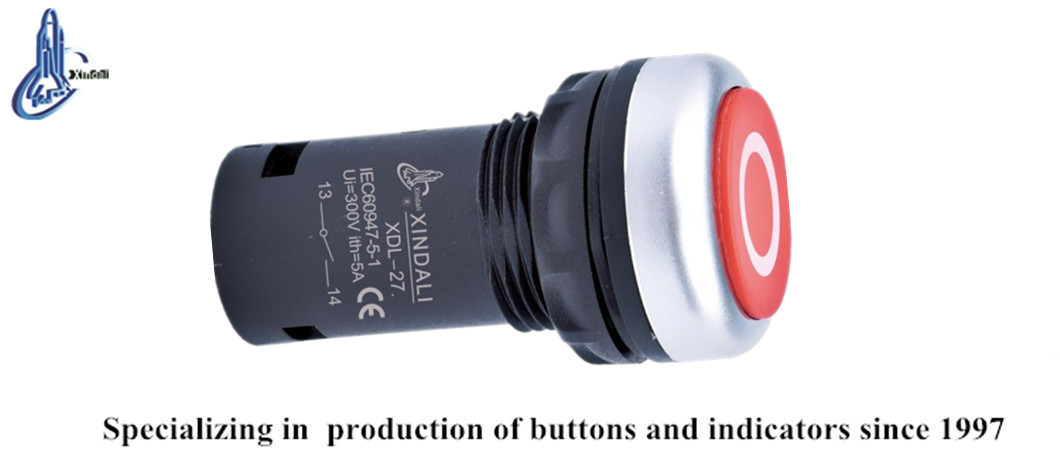

XDL27-CA4322 Waterproof IP65 Flush Spring Return Mark Push Button
Inquire NowDescription
The XDL27-CA4322 Waterproof IP65 Flush Spring Return Mark Push Button is designed for robust applications requiring reliable control in various environments. With its exceptional waterproof rating of IP65, it ensures protection against dust and water, making it ideal for outdoor and harsh indoor settings. This push button series is specifically engineered for controlling circuits of AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V. The main body is crafted from durable zinc alloy and high-grade anti-flame plastic, while the contact uses a special silver alloy for enhanced electrical erosion resistance. The product is versatile, suitable for signal control and interlocking purposes, as well as indicating, warning, and emergency signals, complying with GB/T14048.1 and IEC60947-5-1 standards, and certified by CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Value (Push Button) | Value (Signal Lamp) |
|---|---|---|
| Rated insulation | AC 600V (50Hz/60Hz) | Insulation resistance |
| Conventional heating current | 10A | Contact resistance |
| Insulation resistance | ≥50MΩ | Pf withstand voltage |
| Contact resistance | ≤25MinΩ | Voltage wave |
| Mechanical life | 100×10000 pushes | Brightness |
| Electrical life | 500×10000 pushes | Continuous working life |
Additional Information
- Ideal for use in electrical appliances circuits of AC voltage up to 380V/50Hz and DC voltage below 380V.
- Perfect for applications requiring reliable signaling, including indicators for warnings and emergencies.
- Crafted to resist high electrical erosion and ensure long-lasting performance.
