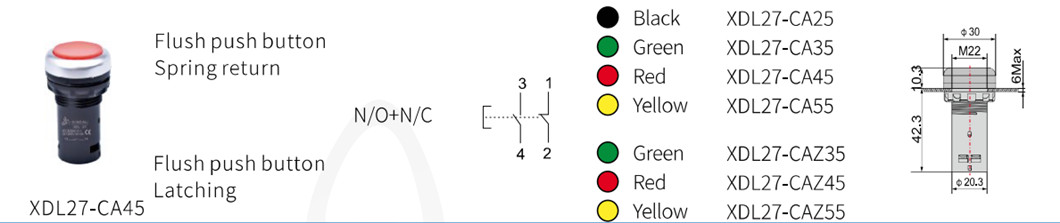

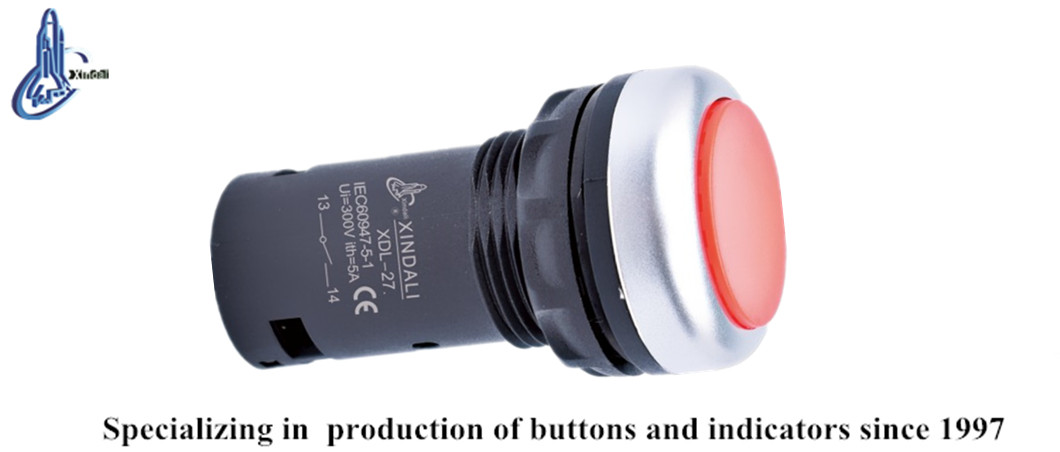

XDL27-CA45 Industrial Waterproof IP67 Flush Switch Electrical Push Button
Inquire NowDescription
The XDL27-CA45 Industrial Waterproof IP67 Flush Switch Electrical Push Button is a robust and reliable switch designed for controlling circuits at high AC and DC voltages. This switch is capable of handling AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, making it suitable for various industrial applications. The main body is constructed from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The switch features a special silver alloy contact that excels in high anti-electrical erosion, which enhances its performance and reliability. Ideal for interlocking purposes and signaling, this push button switch complies with GB/T14048.1 and IEC60947-5-1 standards, and is certified by CE, ISO9001, ROHS, and UL, ensuring excellent quality and safety.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 pushbutton / 50×10000 selector switch |
| Electrical Life | 500×10000 pushbutton / 25×10000 selector switch |
| Continuous Working Life | 10x10000h |
| Brightness | 60cd/m² |
| Voltage Wave | ±20% |
Additional Information
- Ideal for electrical appliances circuits of AC voltage up to 380V/50Hz and DC voltage below 380V.
- Can be used for indicating signals, warning signals, and emergency signals.
