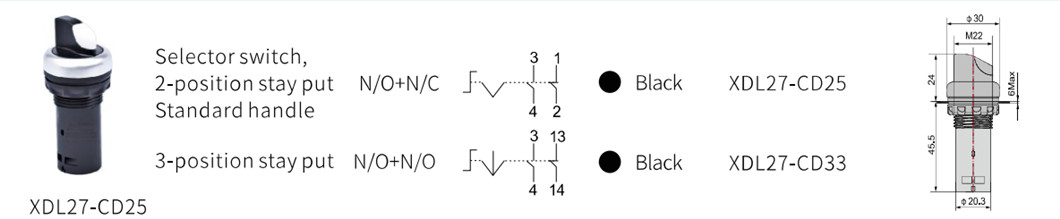

XDL27-CD25 Selector Switch 22mm Push Button Control Selector Switch
Inquire NowDescription

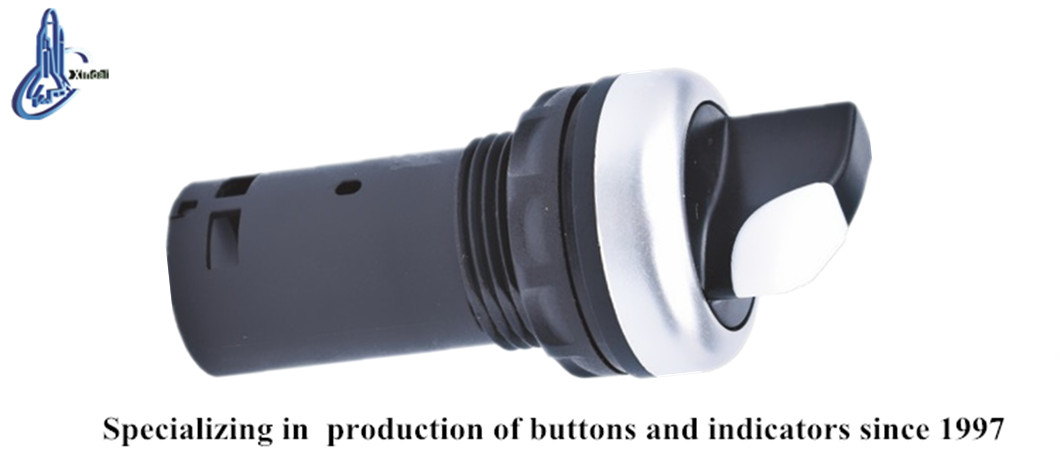

The XDL27-CD25 Selector Switch is a robust and reliable 22mm push button control selector switch, designed for a variety of applications. This product excels in controlling circuits with AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V. Made from a durable zinc alloy and high-grade anti-flame plastic, it ensures longevity and safety in operation. The switch features a special silver alloy contact, providing excellent resistance to electrical erosion. Additionally, the integrated signal lamp operates efficiently within electrical appliances of AC voltage up to 380V, serving as an ideal solution for indicating and warning signals. The XDL27-CD25 complies with GB/T14048.1 and IEC60947-5-1 standards and is certified by CE, ISO9001, ROHS, and UL, ensuring high quality and reliability for any industrial application.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 pushbutton, 50×10000 selector switch |
| Electrical Life | 500×10000 pushbutton, 25×10000 selector switch |
| Brightness | 60cd/m² |
| Continuous Working Life | 10x10000h |
Additional Information
- Ideal for signal control and interlocking purposes.
- Suitable for both industrial and commercial electrical applications.
- Certified for safety and performance, complying with international standards.
