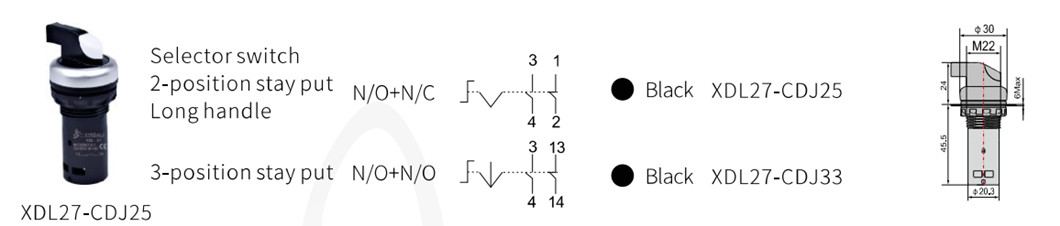

XDL27-CDJ25 3 Position Selector Switch 2 Position Elevator Position Switch
Inquire NowDescription

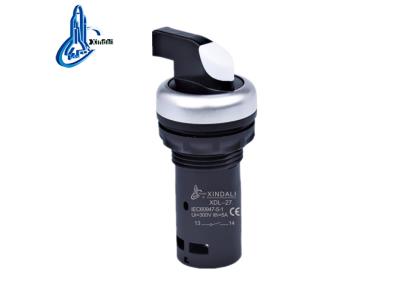

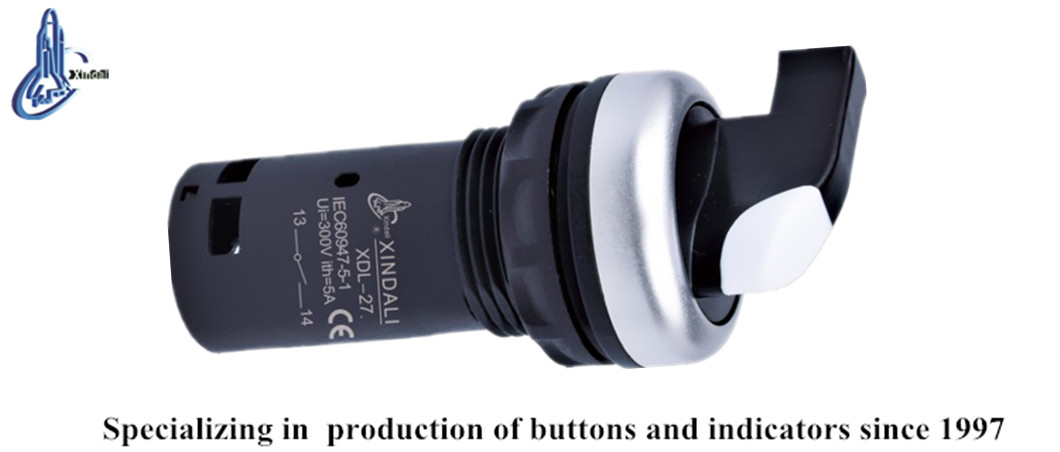

The XDL27-CDJ25 3 Position Selector Switch and 2 Position Elevator Position Switch is a versatile and reliable component designed for controlling circuits with AC voltages up to 660V at 50Hz or 60Hz, as well as DC voltages below 400V. This product serves a dual purpose: it not only facilitates the control of signals but also provides interlocking capabilities for enhanced safety in various applications. The robust main body, crafted from zinc alloy and high-grade anti-flame plastic, ensures durability. Its contacts utilize a specialized silver alloy, renowned for its exceptional resistance to electrical erosion. Additionally, the integrated signal lamp series is suited for electrical applications with AC voltage up to 380V/50Hz and DC voltage below 380V, making it ideal for indicating, warning, or emergency signal purposes. All products are compliant with GB/T14048.1 and IEC60947-5-1 standards, and bear certifications including CE, ISO9001, ROHS, and UL, ensuring quality and safety.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50 MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25 MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 (pushbutton), 50×10000 (selector switch) |
| Electrical Life | 500×10000 (pushbutton), 25×10000 (selector switch) |
| Continuous Working Life | 10x10000h |
| Brightness | 60 cd/m² |
| Voltage Wave | ±20% |
Additional Information
- Complies with GB/T14048.1 and IEC60947-5-1 standards
- CE, ISO9001, ROHS, and UL certified
