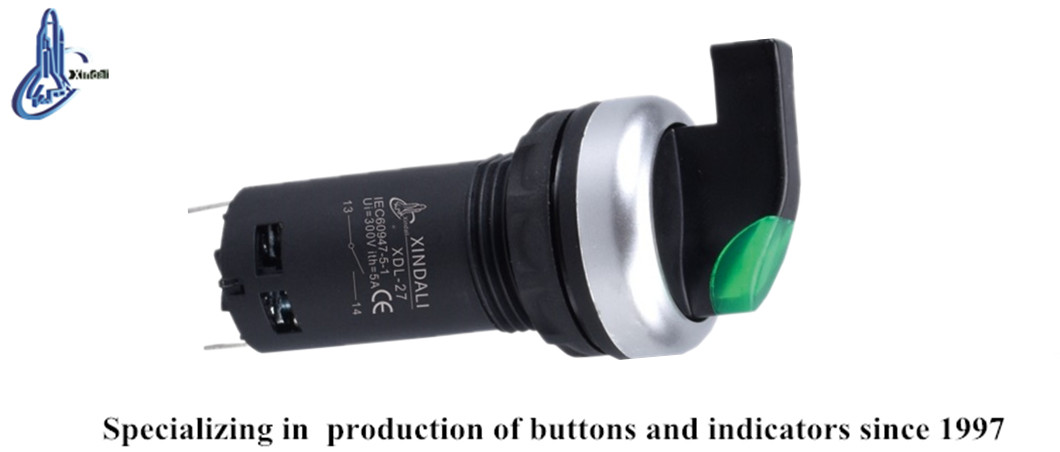

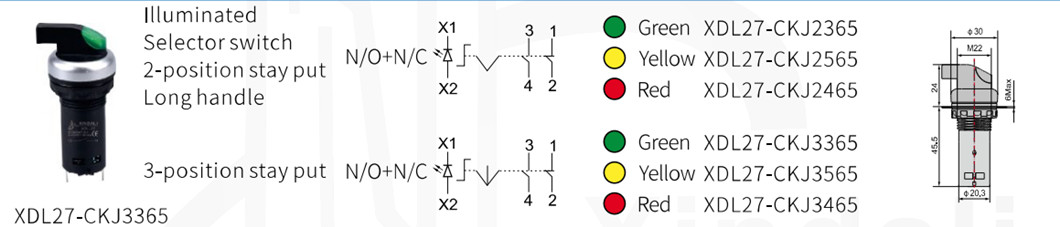

XDL27-CKJ3365 Hand Working Light 3 Position Selector Switch Long Handle Pushbutton
Inquire NowDescription
The XDL27-CKJ3365 Hand Working Light is equipped with a versatile 3-position selector switch and a long handle pushbutton, designed for efficient control in various applications. This innovative product is perfect for managing circuit operations, capable of handling AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V. Its durable construction features a zinc alloy body and high-grade anti-flame plastic, ensuring robustness and safety. The pushbutton series is ideal for controlling signals and interlocking purposes, making it a valuable addition to your electrical applications.
Moreover, the signal lamp series is optimized for electrical appliances operating on AC voltage up to 380V (50Hz) and DC voltage below 380V, serving as an effective solution for indicating, warning, and emergency signals. Compliance with GB/T14048.1 and IEC60947-5-1 standards, along with CE, ISO9001, ROHS, and UL certifications, guarantees high-quality and reliable performance.
Specifications
| Feature | Pushbutton | Selector Switch | Signal Lamp | |
|---|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ | |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ | |
| Mechanical Life | 100×10000 pushes | 50×10000 switches | Brightness | 60cd/m² |
| Electrical Life | 500×10000 pushes | 25×10000 switches | Continuous Working Life | 10x10000h |
| Pf Withstand Voltage | AC 2.5KV/min | Voltage Wave | ±20% |
Additional Information
- Complies with international standards for safety and performance.
- Suitable for various industrial applications where reliable signaling is essential.
- Designed for both indoor and outdoor usage, ensuring versatility.
